3M™ Heat Shrink Thin-Wall Tubing FP-301-1/4-100'-Clear-Spool, 3 Rolls/Case - 7100022513

Name: 3M™ Heat Shrink Thin-Wall Tubing FP-301-1/4-100'-Clear-Spool, 3 Rolls/Case - 7100022513
Brand: 3M Products & Supplies
SKU: 7100022513
Price: 202 USD
Availability: InStock

Sold As: 300-Pack

SKU: 7100022513

MPN: 7100022513

Stock Item: Stock items typically ship within 2-3 business days

UPC: 10051135355791

3M ID: 80610752372

5 Digit UPC: 35579

$202.00 ($0.67 / Count)

Hurry up! Current stock:

Quantity:

Product Description

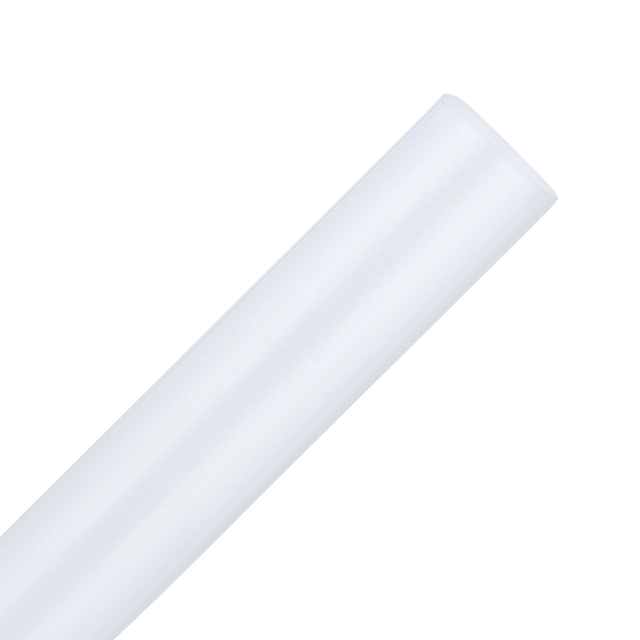

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)

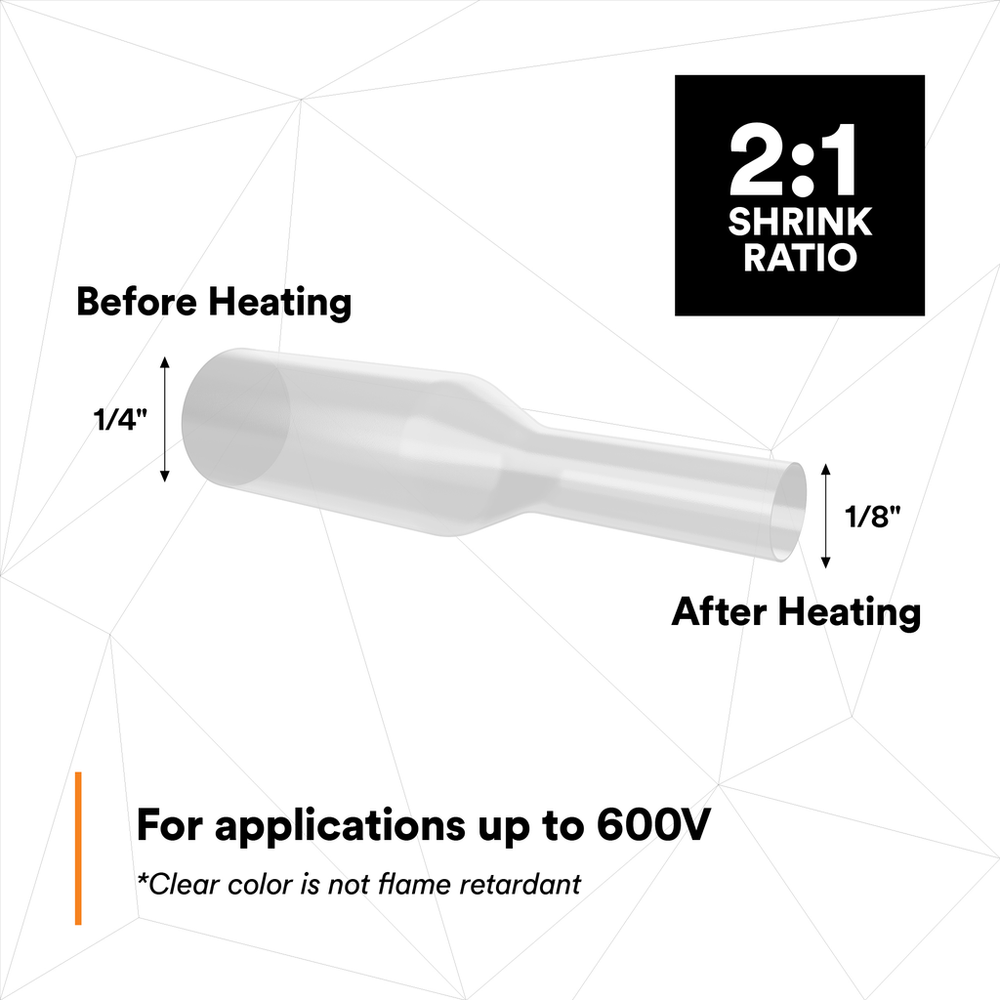

A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)

Spec Sheet

Downloads

Spec Sheet

Document Brochures

Product Selection Guides

Specifications

Shelf Life	3600
Country of Origin	United States
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Heat Shrink Type	Single-Wall Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Imperial)	0.25
Mil Spec	SAE-AMS-DTL-23053/5, Class 2
Minimum Shrink Temperature (Celsius)	100.0
Inner Diameter Before Shrink (Metric) UOM	mm
Maximum Operating Temperature (Fahrenheit)	275.0
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Overall Length (Imperial)	100.0
Maximum Operating Temperature (Celsius)	135.0
Minimum Expanded Tubing I. D. UOM	in
Operating Temperature Range (Celsius)	-55 °C to +135 °C
Inner Diameter Before Shrink (Metric)	6.35
Inner Diameter Before Shrink (Imperial) UOM	in
Inner Diameter After Shrink (Metric) UOM	mm
Elongation UOM	%
Inner Diameter After Shrink (Imperial)	0.125
UL File Number	E-39100
Product Color	Transparent
Tubing Type	Single Wall (Thin)
Application	Electrical Insulation; High-tenacity and chemically resistant tubing
Material	Flexible Polyolefin
Adhesive Material	None
With Inner Glue	No
Maximum Operating Temperature (Celsius) Uom	Degree
Non-Corrosive	Yes
Operating Temperature (Fahrenheit)	-67 °F to 275 °F
Minimum Expanded Tubing I. D.	1.0
UL Approval	Yes
Flame Retardant	No
Overall Length (Imperial) UOM	ft
Overall Length (Metric)	30.5
Operating Temperature (Celsius)	-55 to 135 Degrees Celsius
Overall Length (Metric) UOM	m
Operating Temperature Range (Fahrenheit)	-67 °F to 275 °F
Inner Diameter After Shrink (Metric)	3.18
Inner Diameter After Shrink (Imperial) UOM	in
Units per Case	3.0
Shrink Ratio	2:1
