3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-1-48"-Clear-Hdr-5 Pcs, 48 in Length sticks with header label, 5 pieces/case - 7000133569

Sold As: 5-Pack
SKU: 7000133569
MPN: 7000133569
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128596821
3M ID: 80611473432
5 Digit UPC: 59682
$46.62 ($9.32 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)

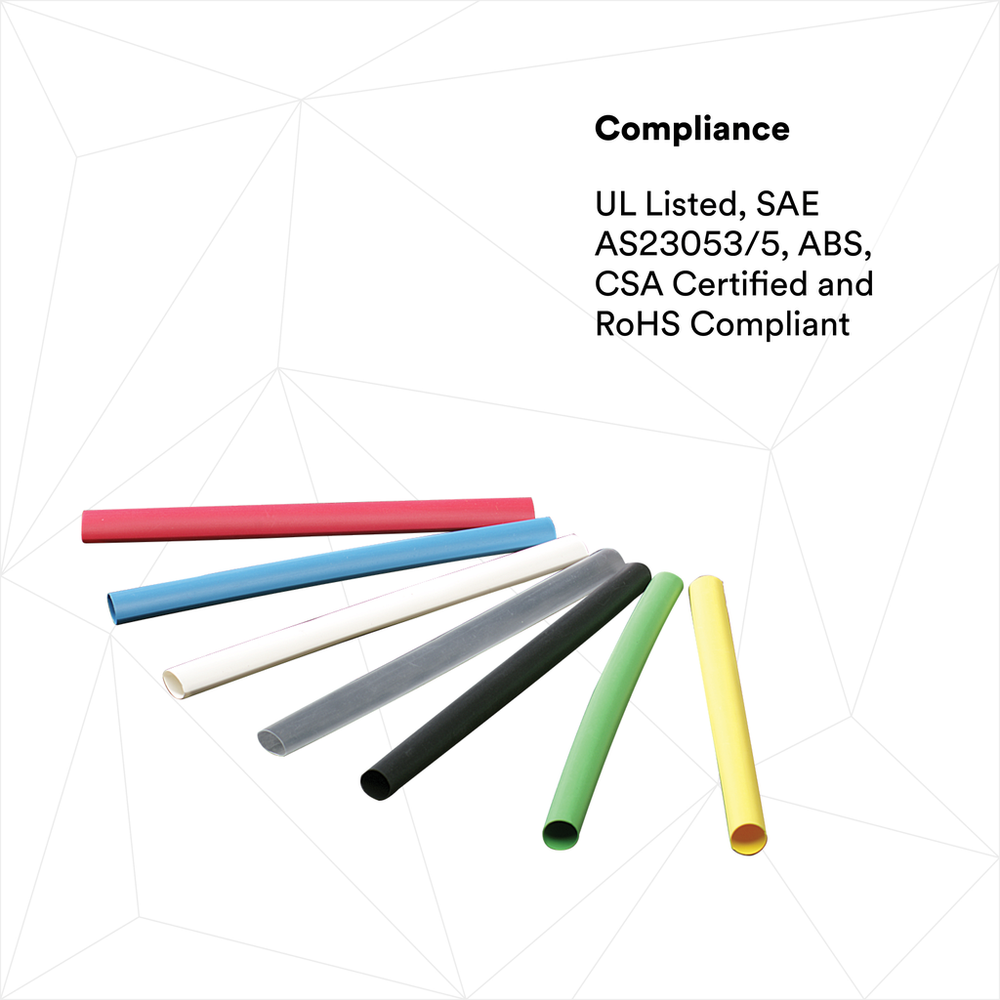

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Flame RetardantNo
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Imperial) UOMin
UL ApprovalYes
Overall Length (Metric)1220.0
Inner Diameter After Shrink (Metric) UOMmm
Adhesive MaterialNone
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Shrink Temperature (Celsius)100.0
Overall Length (Imperial)48.0
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter After Shrink (Imperial)0.5
Minimum Expanded Tubing I. D.1.0
Inner Diameter After Shrink (Metric)12.7
Maximum Operating Temperature (Celsius) UomDegree
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Mil SpecSAE-AMS-DTL-23053/5, Class 2
Units per Case5.0
Maximum Operating Temperature (Celsius)135.0
Operating Temperature (Fahrenheit)-67 °F to 275 °F
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)1.0
Overall Length (Metric) UOMmm
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Width (Imperial) UOMin
Product ColorTransparent
Overall Width (Imperial)1.0
Maximum Operating Temperature (Fahrenheit)275.0
MaterialPolyolefin
Inner Diameter Before Shrink (Metric)25.4
Non-CorrosiveYes
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMin
Operating Temperature Range (Celsius)-55 °C to +135 °C
Shrink Ratio2:1
UL Bug Voltage600 Volt
Inner Diameter Before Shrink (Metric) UOMmm
Tubing TypeSingle Wall (Thin)
UL Bug Temperature (Celsius)125 Degrees Celsius
Elongation UOMdB
