3M Products & Supplies

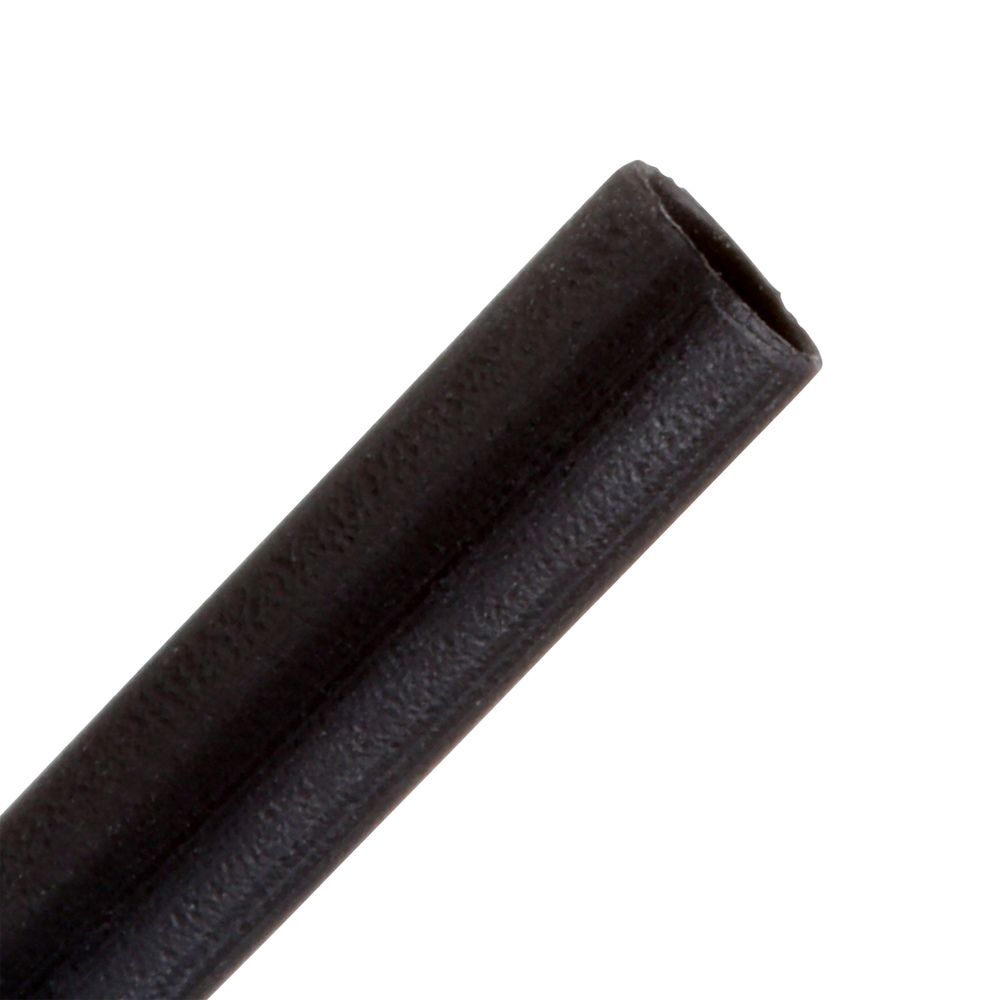

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/32-48"-Black-250 Pcs, 48 in Length sticks, 250 pieces/case - 7100032539

Sold As: 250-Pack
SKU: 7100032539
MPN: 7100032539
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128598108
3M ID: 80611600711
5 Digit UPC: 59810
$543.49 ($2.17 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Flame RetardantYes
Product ColorBlack
Overall Width (Imperial) UOMin
Inner Diameter After Shrink (Metric)1.17
UL ApprovalYes
Inner Diameter After Shrink (Imperial)0.046
Overall Length (Imperial) UOMin
Mil SpecAMS-DTL-23053/5, Class 1
Overall Width (Metric)2.38
Overall Width (Metric) UOMmm
Minimum Expanded Tubing I. D. UOMin
Shrink Ratio2:1
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Operating Temperature Range (Celsius)-55 °C to +135 °C
Operating Temperature (Fahrenheit)-67 °F to 275 °F
UL Bug Voltage600 Volt
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Metric) UOMmm
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
UL Bug Temperature (Celsius)125 Degrees Celsius
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)0.093
Minimum Expanded Tubing I. D.3.0
Elongation UOM%
Adhesive MaterialNone
Overall Length (Metric)1220.0
Maximum Operating Temperature (Fahrenheit)275.0
Non-CorrosiveYes
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Inner Diameter Before Shrink (Imperial) UOMin
Tubing TypeSingle Wall (Thin)
Units per Case250.0
Minimum Shrink Temperature (Celsius)100.0
Overall Width (Imperial)0.09
Inner Diameter Before Shrink (Metric)2.36
Overall Length (Imperial)48.0
MaterialPolyolefin
Inner Diameter After Shrink (Metric) UOMmm
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Celsius)135.0
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius) UomDegree
