3M Products & Supplies

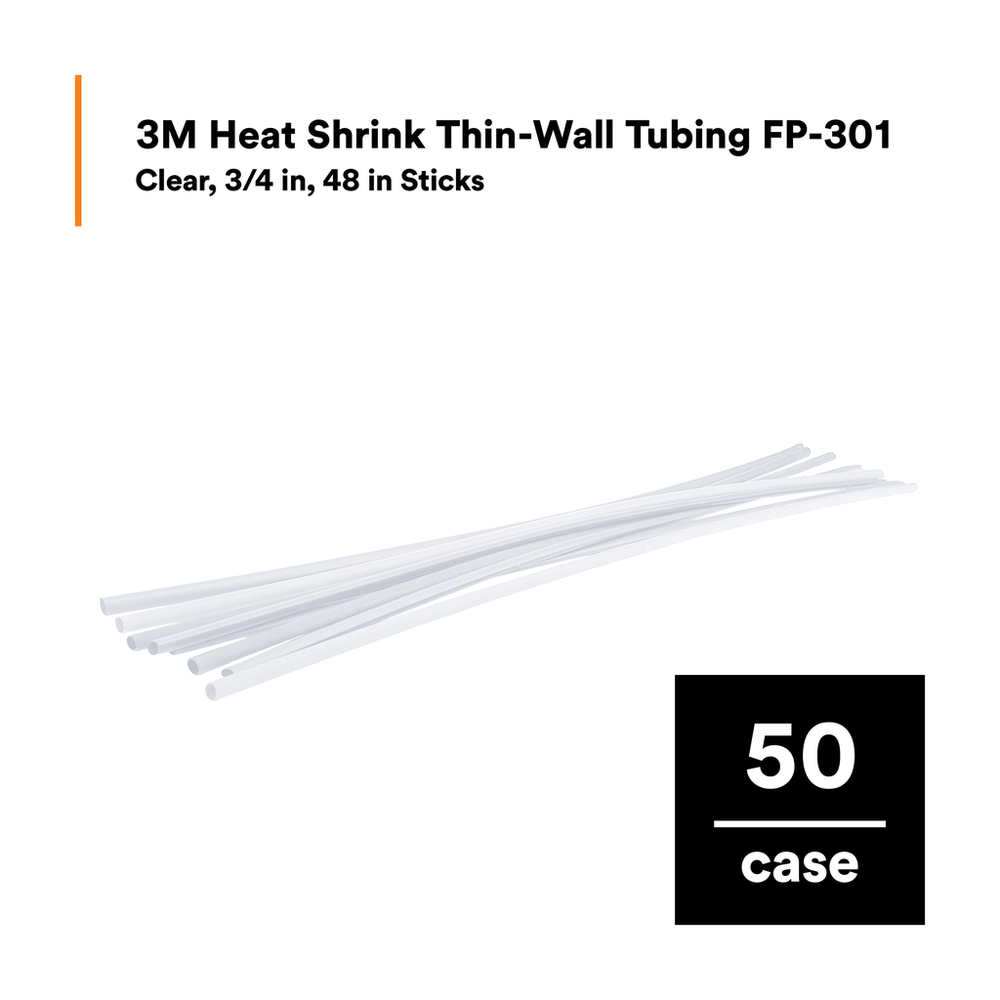

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/4-48"-Clear-50 Pcs, 48 in Length sticks, 50 pieces/case - 7000133610

Sold As: 50-Pack
SKU: 7000133610
MPN: 7000133610
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128598556
3M ID: 80611601164
5 Digit UPC: 59855
$228.83 ($4.58 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius)135.0
Minimum Expanded Tubing I. D. UOMin
Minimum Expanded Tubing I. D.3.0
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Operating Temperature Range (Celsius)-55 °C to +135 °C
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)275.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Overall Length (Metric)1220.0
Flame RetardantNo
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UomDegree
Mil SpecAMS-DTL-23053/5, Class 1
Overall Width (Metric) UOMmm
Overall Length (Imperial)48.0
UL Bug Temperature (Celsius)125 Degrees Celsius
Non-CorrosiveYes
UL Bug Voltage600 Volt
Minimum Shrink Temperature (Celsius)100.0
Shrink Ratio2:1
Inner Diameter After Shrink (Imperial)0.375
UL ApprovalYes
Inner Diameter Before Shrink (Imperial)0.75
Overall Width (Imperial)0.75
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Metric)9.53
MaterialPolyolefin
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Adhesive MaterialNone
Inner Diameter Before Shrink (Metric)19.05
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial) UOMin
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Units per Case50.0
Product ColorTransparent
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Tubing TypeSingle Wall (Thin)
Elongation UOMdB
