3M Products & Supplies

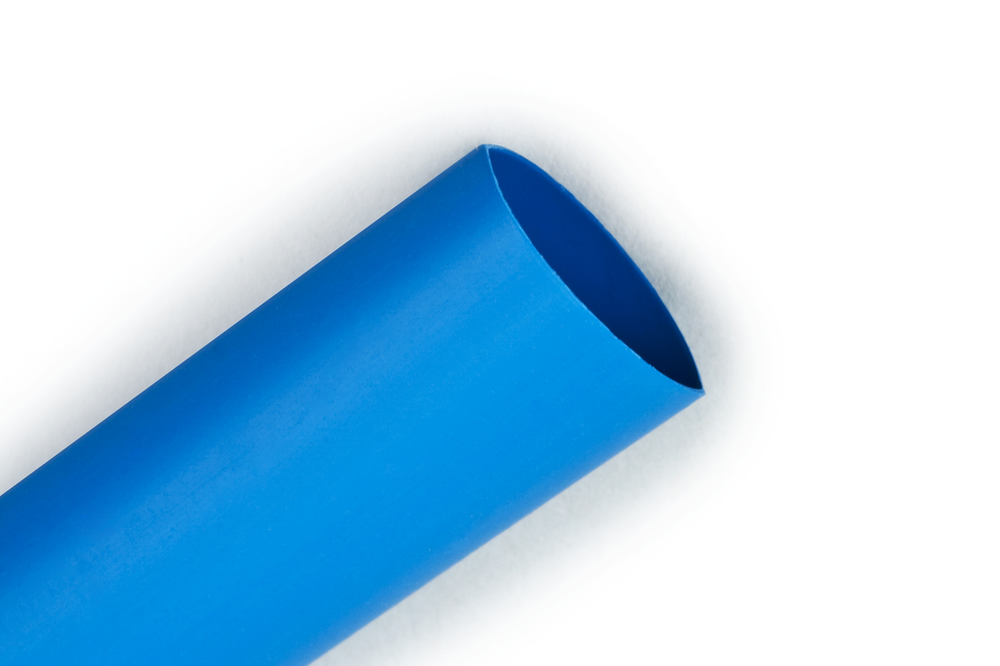

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/4-Blue-200`: 200 ft spool length, 600 linear ft/box, 3 Rolls/Case - 7010349739

Sold As: 600-Pack
SKU: 7010349739
MPN: 7010349739
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007085041
3M ID: 80610219729
5 Digit UPC: 8504
$652.19 ($1.09 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Product ColorBlue
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Elongation UOM%
Inner Diameter Before Shrink (Metric)19.05
Flame RetardantYes
Tubing TypeSingle (Thin) Wall
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter After Shrink (Imperial)0.375
Overall Length (Imperial)200.0
Overall Length (Imperial) UOMft
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric)9.53
Maximum Operating Temperature (Celsius)135.0
Minimum Expanded Tubing I. D.3.0

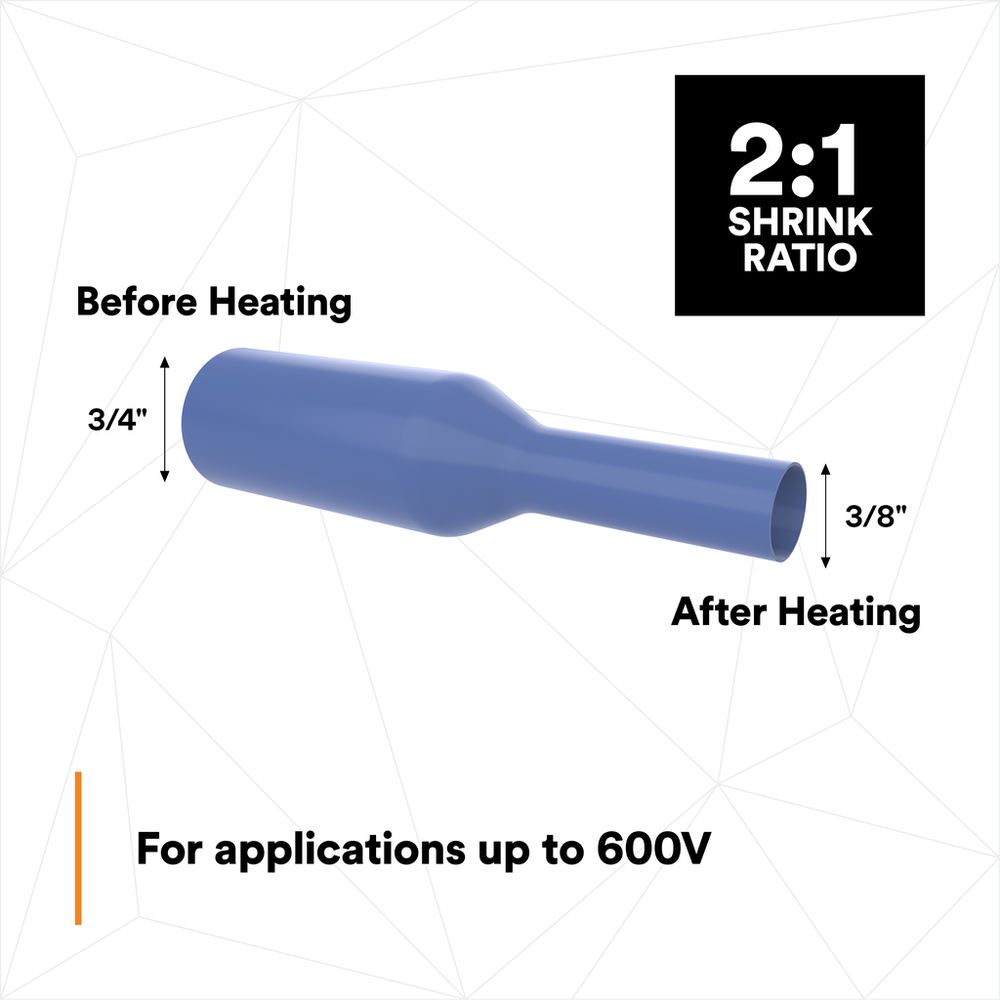

Shrink Ratio2:1
Inner Diameter Before Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
UL File NumberE-39100
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)275.0
Non-CorrosiveYes
Inner Diameter Before Shrink (Imperial)0.75
Maximum Operating Temperature (Fahrenheit) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Metric) UOMmm
Adhesive MaterialNone
Mil SpecAMS-DTL-23053/5, Class 1
Maximum Operating Temperature (Celsius) UomDegree
