3M Products & Supplies

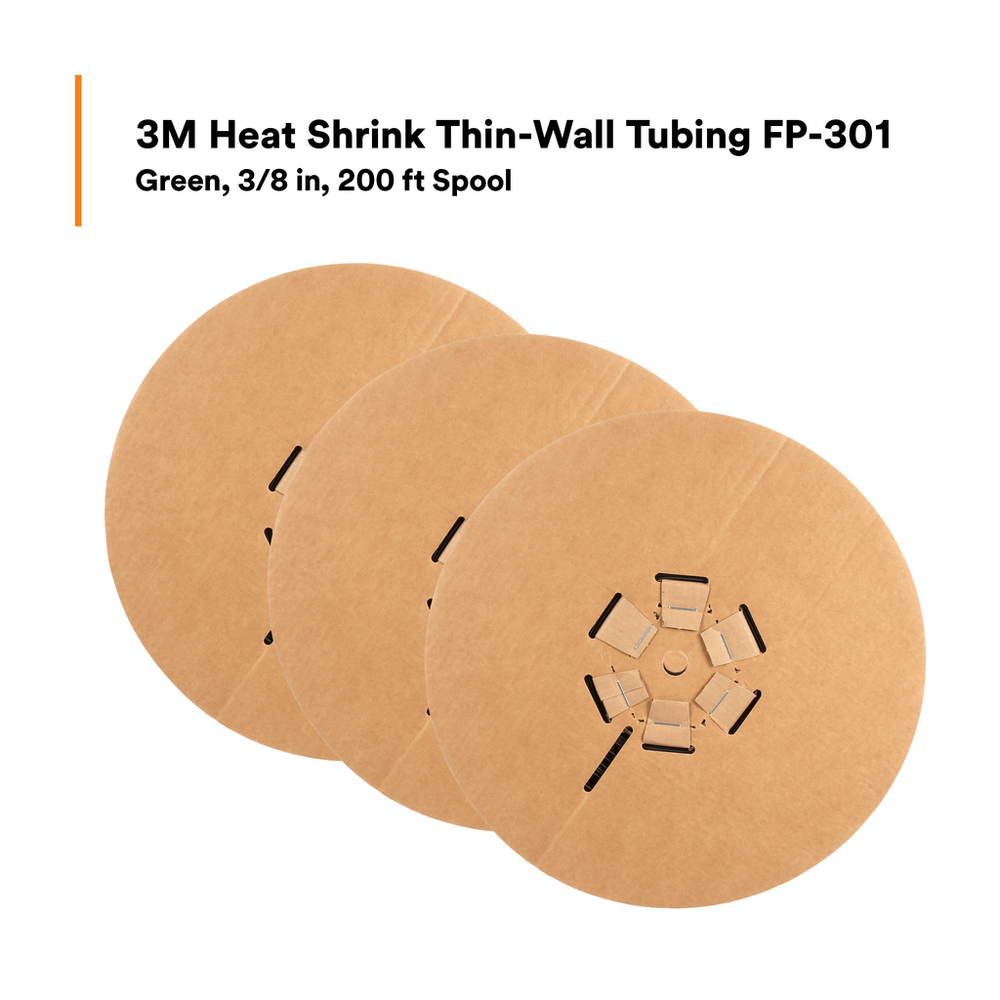

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/8-Green-200`: 200 ft spool length, 600 linear ft/box, 3 Rolls/Case - 7100020275

Sold As: 1800-Pack
SKU: 7100020275
MPN: 7100020275
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007569879
3M ID: 80610649479
5 Digit UPC: 56987
$1,104.92 ($0.61 / Count)
Hurry up! Current stock:

Product Description

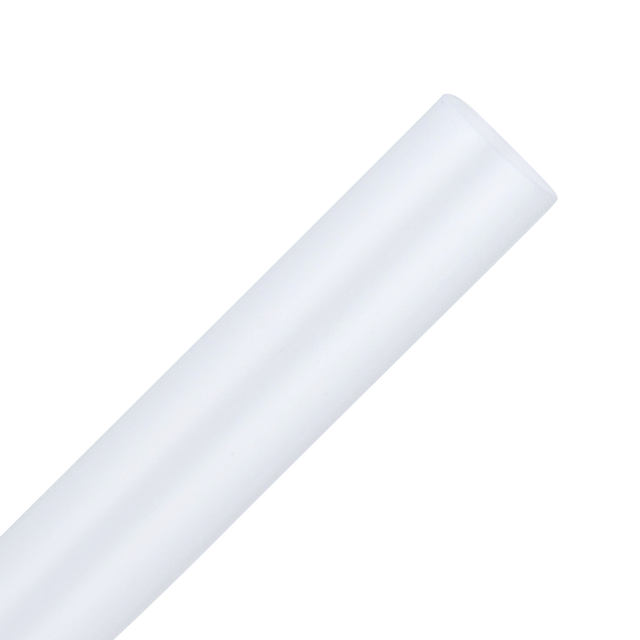

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Flame RetardantYes
Inner Diameter Before Shrink (Imperial)0.375
Minimum Expanded Tubing I. D.3.0
UL File NumberE-39100
Overall Length (Imperial)200.0
MaterialFlexible Polyolefin
Minimum Expanded Tubing I. D. UOMin
Operating Temperature Range (Celsius)-55 °C to +135 °C
Product FormStick
Inner Diameter After Shrink (Metric)4.75
Tubing TypeSingle Wall (Thin)
Inner Diameter After Shrink (Imperial)0.187
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Imperial) UOMft
Maximum Operating Temperature (Celsius)135.0
Inner Diameter After Shrink (Imperial) UOMin
UL ApprovalYes
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Product ColorGreen
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Shrink Temperature (Celsius)100.0
Adhesive MaterialNone
Elongation UOM%
Non-CorrosiveYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Metric)9.53
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Metric) UOMmm
Operating Temperature (Celsius)-55 to 135 Degrees Celsius

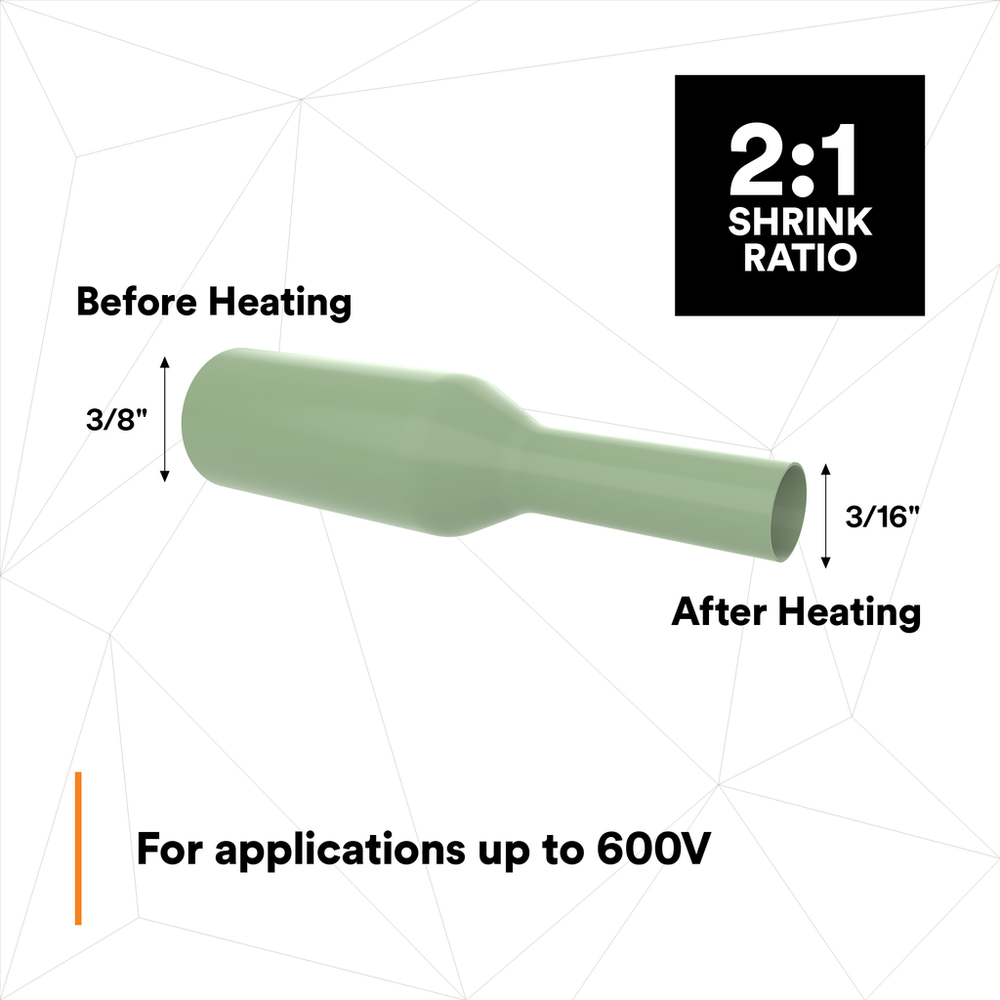

Shrink Ratio2:1
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)275.0
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
