3M Products & Supplies

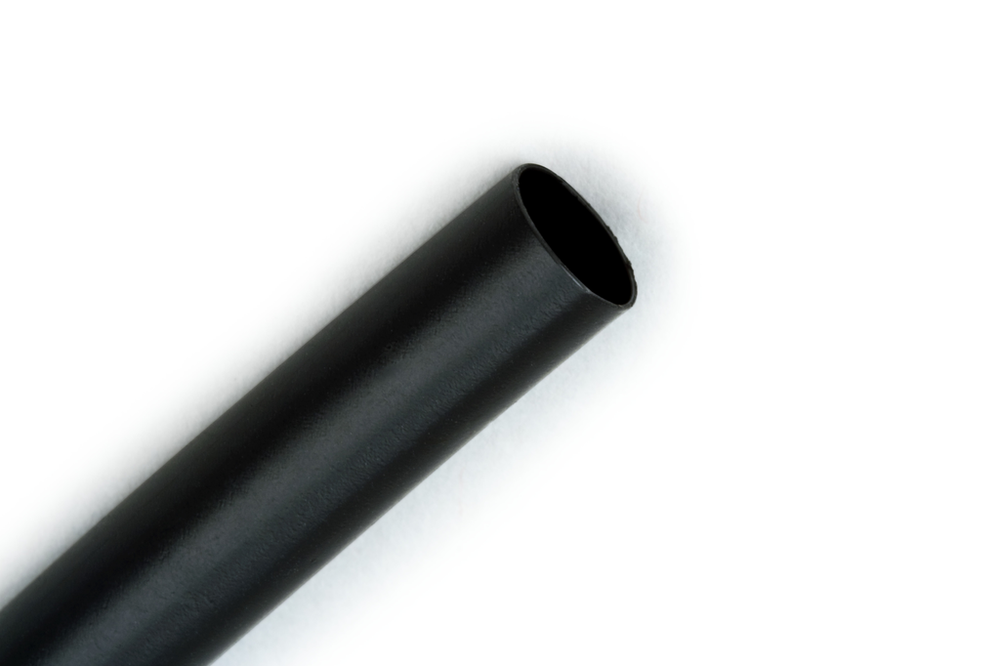

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/8-48"-Black-Hdr-12 Pcs, 48 in Length sticks with header label, 12 pieces/case - 7000133556

Sold As: 12-Pack
SKU: 7000133556
MPN: 7000133556
For an accurate lead time please contact us
UPC: 00051128596616
3M ID: 80611473226
5 Digit UPC: 59661
$54.23 ($4.52 / Count)
Hurry up! Current stock:

Product Description

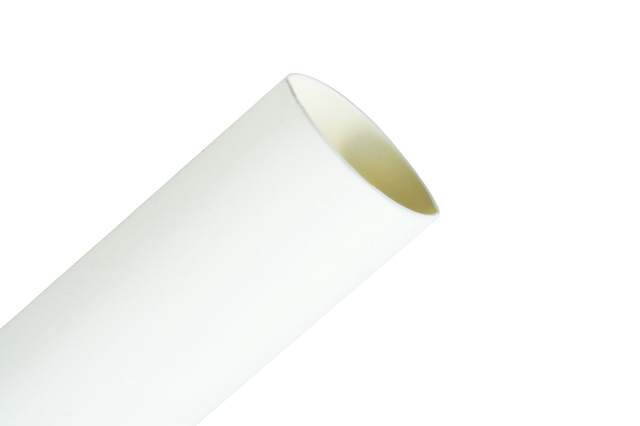

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Adhesive MaterialNone
Overall Length (Imperial)48.0
UL Bug Voltage600 Volt
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric) UOMmm
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Expanded Tubing I. D. UOMin
Shrink Ratio2:1
Inner Diameter After Shrink (Imperial)0.187
Units per Case12.0
Non-CorrosiveYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
MaterialPolyolefin
Operating Temperature (Fahrenheit)-67 °F to 275 °F
UL Bug Temperature (Celsius)125 Degrees Celsius
Elongation UOM%
Overall Width (Metric)9.52
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)275.0
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Overall Length (Metric)1220.0
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Maximum Operating Temperature (Celsius)135.0
UL ApprovalYes
UL File NumberE-39100
Inner Diameter Before Shrink (Imperial)0.375
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Mil SpecSAE-AMS-DTL-23053/5, Class 1
Operating Temperature Range (Celsius)-55 °C to +135 °C
Overall Length (Metric) UOMmm
Inner Diameter Before Shrink (Metric)9.53
Minimum Expanded Tubing I. D.0.375
Overall Width (Imperial)0.37
Inner Diameter After Shrink (Metric)4.75
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Minimum Shrink Temperature (Celsius)100.0
Tubing TypeSingle Wall (Thin)
Inner Diameter After Shrink (Imperial) UOMin
Product ColorBlack
Flame RetardantYes
