3M Products & Supplies

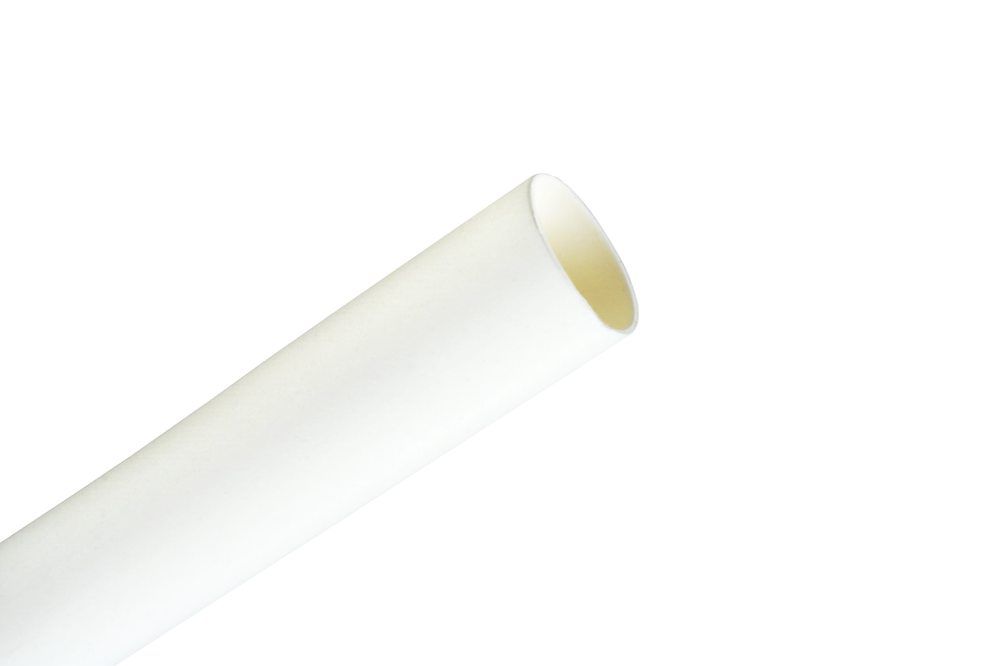

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/8-48"-White-Hdr-12 Pcs, 48 in Length sticks with header label, 12 pieces/case - 7000133557

Sold As: 816-Pack
SKU: 7000133557
MPN: 7000133557
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128596630
3M ID: 80611473242
5 Digit UPC: 59663
$3,687.89 ($4.52 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)9.53
Overall Length (Imperial)48.0
Adhesive MaterialNone
Inner Diameter After Shrink (Metric)4.75
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Minimum Expanded Tubing I. D. UOMin
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Units per Case12.0
Overall Length (Metric) UOMmm
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric) UOMmm
Elongation UOMdB
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL ApprovalYes
Maximum Operating Temperature (Fahrenheit)275.0
Product ColorWhite
UL File NumberE-39100
Minimum Shrink Temperature (Celsius)100.0
Overall Width (Imperial)0.37
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Expanded Tubing I. D.0.375
Mil SpecSAE-AMS-DTL-23053/5, Class 1
Maximum Operating Temperature (Celsius) UomDegree
Non-CorrosiveYes
Shrink Ratio2:1
UL Bug Voltage600 Volt
Overall Width (Imperial) UOMin
UL Bug Temperature (Celsius)125 Degrees Celsius
MaterialPolyolefin
Inner Diameter After Shrink (Imperial)0.187
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Metric)1220.0
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Tubing TypeSingle Wall (Thin)
Maximum Operating Temperature (Celsius)135.0
Overall Length (Imperial) UOMin
Overall Width (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)0.375
Flame RetardantYes
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Operating Temperature Range (Celsius)-55 °C to +135 °C
