3M Products & Supplies

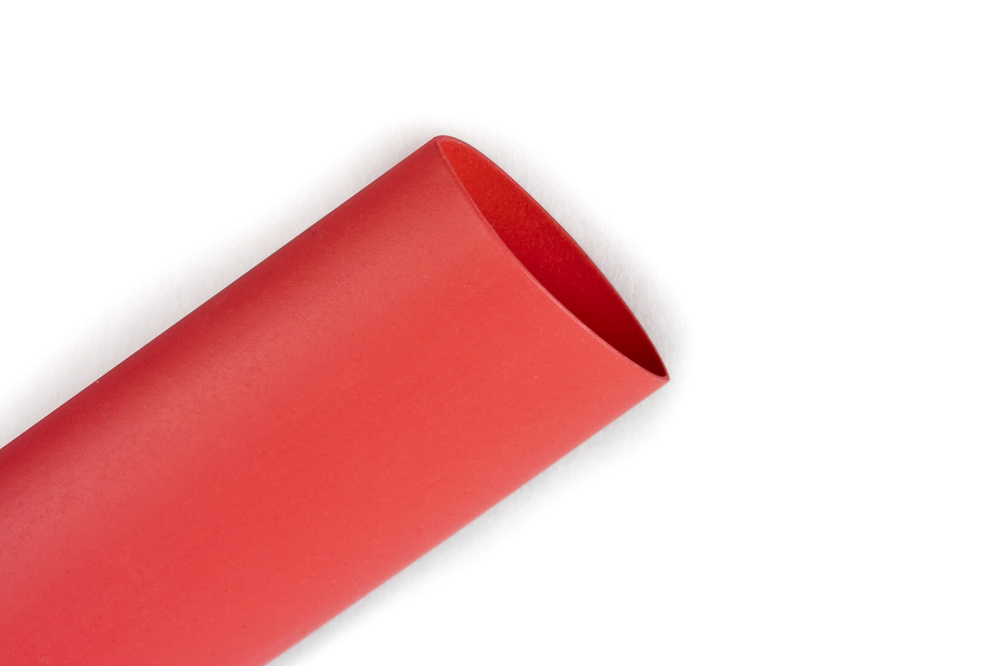

3M™ Heat Shrink Thin-Wall Tubing FP-301-3-Red-50', 50 ft Length spool, 150 ft/case - 7100025971

Sold As: 2700-Pack
SKU: 7100025971
MPN: 7100025971
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007388814
3M ID: 80610240154
5 Digit UPC: 38881
$15,181.49 ($5.62 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3650
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UomDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Tubing TypeSingle Wall (Thin)
Units per Case1.0
Flame RetardantYes
MaterialFlexible Polyolefin
UL File NumberE-39100
Inner Diameter After Shrink (Imperial) UOMin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Maximum Operating Temperature (Fahrenheit) UOMDegree
Shrink Ratio2:1
Elongation UOMDecibel
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter After Shrink (Metric) UOMmm
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Non-CorrosiveYes
UL ApprovalYes
Inner Diameter After Shrink (Metric)38.1
Adhesive MaterialNone
Maximum Operating Temperature (Celsius)135.0
Minimum Expanded Tubing I. D.3.0
Inner Diameter After Shrink (Imperial)1.5
Operating Temperature Range (Celsius)-55 °C to +135 °C
Inner Diameter Before Shrink (Imperial) UOMin
Minimum Shrink Temperature (Celsius)100.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Imperial)150.0
Overall Length (Imperial) UOMft
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter Before Shrink (Metric)76.2
Inner Diameter Before Shrink (Imperial)3.0
Inner Diameter Before Shrink (Metric) UOMmm
