3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-4-Yellow-50', 50 ft Length, 1524 Meter/Case - 7000058002

Sold As: 3-Pack
SKU: 7000058002
MPN: 7000058002
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 50054007388956
3M ID: 80610240295
5 Digit UPC: 38895
$1,663.53 ($554.51 / Count)
Hurry up! Current stock:

Product Description

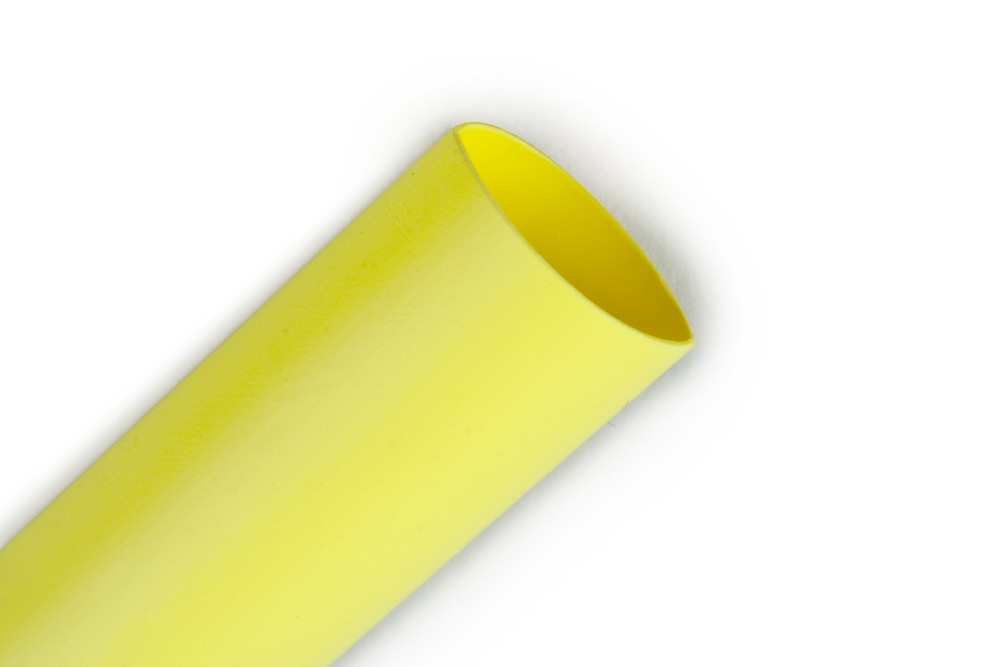

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Metric)101.6
Shrink Ratio2:1
Units per Case1.0
Overall Length (Imperial) UOMft
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial)50.0
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Maximum Operating Temperature (Celsius) UomDegree
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Minimum Expanded Tubing I. D.4.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Metric) UOMmm
UL File NumberE-39100
Inner Diameter After Shrink (Imperial) UOMin
Flame RetardantYes
Tubing TypeSingle (Thin) Wall
Inner Diameter After Shrink (Metric)50.8
Maximum Operating Temperature (Celsius)135.0
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Imperial)2.0
Non-CorrosiveYes
Elongation UOMdB
Product ColorYellow
Adhesive MaterialNone
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter Before Shrink (Imperial)4.0
Mil SpecAMS-DTL-23053/5, Class 1
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
