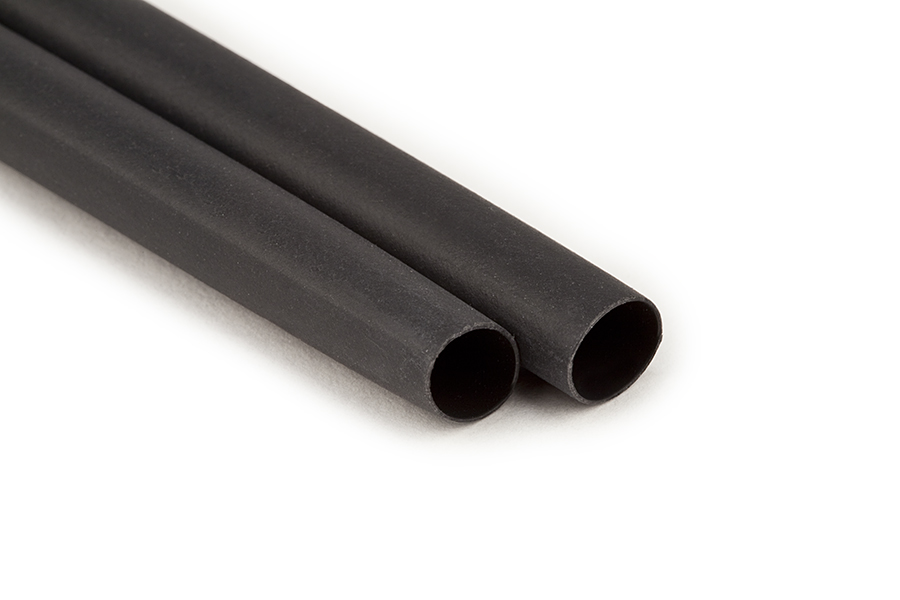

3M™ Heat Shrinkable Thick-Wall Cable Sleeve ITCSF-0400-BK-48A-MSHA, Black, 12-6 AWG, 4 ft length, 20 per box, 20/Case - 7010350315

Sold As: 100-Pack
SKU: 7010350315
MPN: 7010350315
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051135382301
3M ID: 80610907281
5 Digit UPC: 38230
$3,886.07 ($38.86 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSF is a flexible, thick wall sleeve that provides a high degree of mechanical strength. This sleeve has a 3:1 shrink ratio to offer flame retardant insulation for 1 kV rated applications. It has a cross linked polyolefin construction that provides moisture seal protection.

Features

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Made of black cross-linked polyolefin
  • Flame-retardant
  • Provides better mechanical protection
  • Suitable for insulating electrical splices, connections and terminations
  • Offers shrink-fit electrical insulation

Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Metric) UOMmm
MaterialPolyolefin
Minimum Expanded Tubing I. D.0.4
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Flame RetardantNo
Inner Diameter Before Shrink (Imperial)0.4
Overall Length (Metric) UOMmm
Adhesive LinedYes
Overall Length (Imperial)48.0
Maximum Operating Temperature (Celsius)100.0
Overall Length (Metric)1219.0
Inner Diameter Before Shrink (Metric)10.2
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink (Imperial)0.15
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter After Shrink (Metric)3.8
Specifications MetMSHA, UL 486D*
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial) UOMin
Units per Case100.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Expanded Tubing I. D. UOMin
Operating Temperature (Celsius)-55 to 100 Degrees Celsius
Shrink Ratio3:1
Product ColorBlack
Tubing TypeHeavy Wall
