3M Products & Supplies

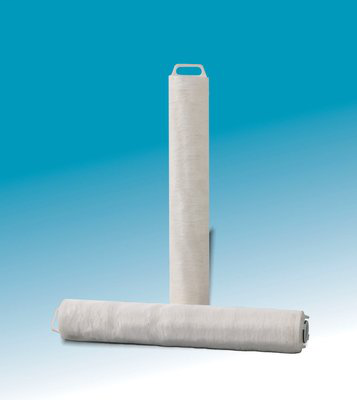

3M High Flow Series Filter Cartridge, 1 per case, HF10PP005A01

SKU: 7000125842
MPN: HF10PP005A01
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00016145215865
3M ID: 70020234640
5 Digit UPC: 21586
$192.91 each
Hurry up! Current stock:

Product Description

Overview

  • We specifically designed 3M™ High Flow Series Filter Housings to deliver all of the filtration benefits in a compact footprint. Housings are available in standard designs, as well as customizable configurations to suit your specific needs. All standard 3M High Flow Series Filter Housings are designed, manufactured, tested, and code stamped in accordance with ASME Section VIII, Division 1.
  • 3M High Flow Series Filter Housings are 33% to 50% smaller than competitively sized housings for a given flow rate. Fewer filters and user-friendly housing designs mean faster, easier change-outs than competitively sized systems. Our high flow series filter housings are available in a variety of sizes to accommodate up to 7 filter elements in both 40-inch and 60-inch lengths. Our horizontal design option maximizes ease of operation and our vertical design can minimize the system's footprint.
  • Our housings are designed with features that make them easy to use and streamline processes. Spend less time servicing thanks to removable cartridge posts that lift out for easy cleaning, which helps maintain cleaner systems and longer product life. Shouldered seal plates fit solidly into the cartridge core for a positive cartridge seal to help prevent bypass, leaks and to maintain system pressure. Housing drains for both sludge and clean chambers feature drain couplings for easy draining. An air vent facilitates effective venting before start up or draining. 3M High Flow Series Filter Housings are 33% to 50% smaller than competitively sized housings for a given flow rate. Fewer filters and a user-friendly housing design mean faster change-outs than competitively sized systems.
  • Robust cartridge center-post design eliminates bulky support plates providing easy access to housing internals
  • Convenient cover designs provide easy element change-outs
  • Manufactured from carbon steel, 304 or 316L stainless steel offers effective corrosion protection
  • 33% to 50% smaller housing size provides better appearance and fit than competitively sized and flow rated housings
  • ASME Code design meets high quality and performance standards

Specifications

Gasket/O-ring MaterialSilicone
Pressure Range50 psid @ 68°F
Pressure Range (metric)3.4 bar @ 20°C
Flow Rate85 gpm
Diameter (Metric)16.5 cm
Flow Rate (metric)321.8 Litre per minute
Pleat TypeRadial
Length10 Inch
Brand3M
Diameter6.5 Inch
Filter MaterialPolypropylene
Filter TypeDepth Filter
Maximum Operating Temperature (Celsius)71°C
Series3M™ High Flow Series
Length (Metric)25.4 cm
