3M Products & Supplies

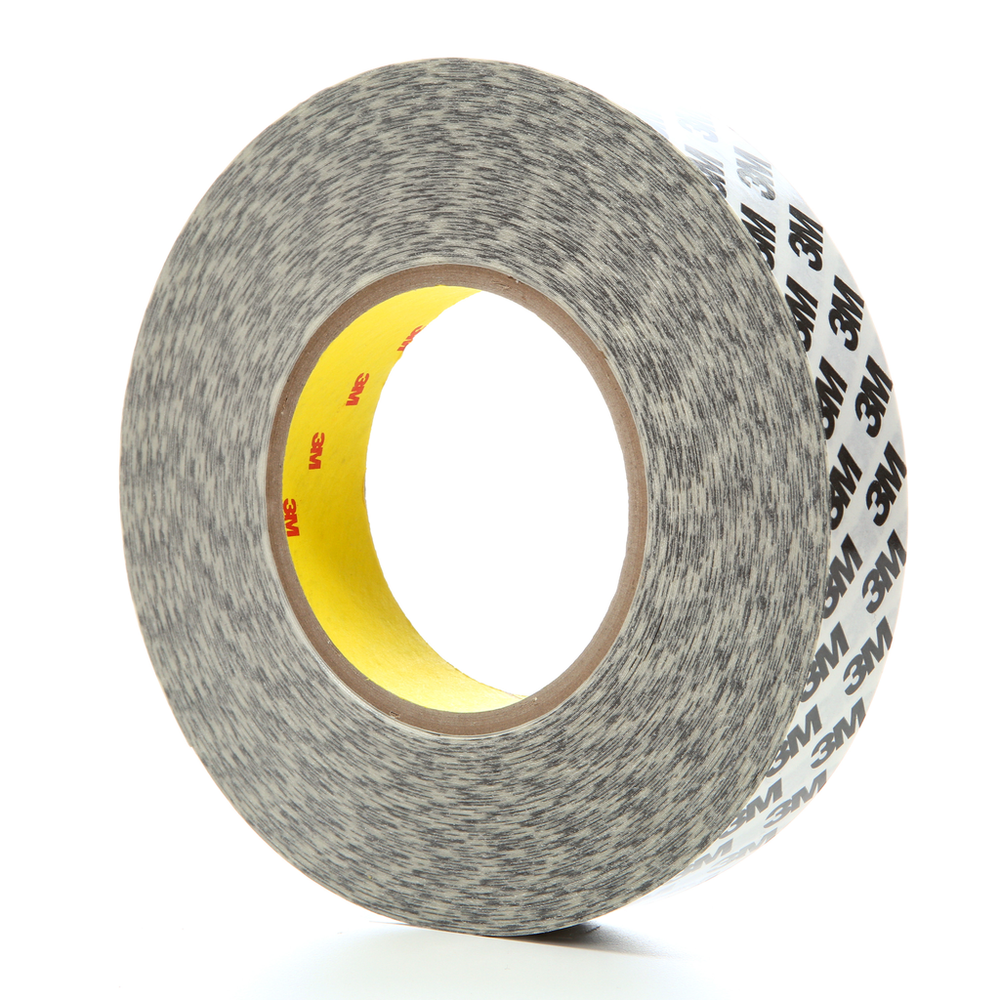

3M™ High Performance Double Coated Tape 9086, White, 1 in x 55 yd, 7.5 mil, 18 Roll/Case - 7000124691

Sold As: 18-Pack
SKU: 7000124691
MPN: 7000124691
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051111077818
3M ID: 70006658192
5 Digit UPC: 7781
$474.27 ($26.35 / Count)
Hurry up! Current stock:

Product Description

3M™ High Performance Double Coated Tape 9086 features a specially-formulated acrylic adhesive that delivers very high initial tack and excellent peel and shear performance on a wide range of surfaces and materials. At 3.5 mils per side, the adhesive bonds to smooth, rough or textured surfaces. A 0.5 mil tissue carrier is conformable and hand-tearable for efficient processing and use.

Features

  • 0.5 mil tissue carrier is conformable and tears by hand for fast, efficient handling
  • Tissue carrier allows for use in hand dispenser
  • Double coated tissue carrier with 3.5 mil adhesive on each side
  • Bonds to a wide variety of substrates including textured surfaces and difficult-to-stick-to plastics
  • 375 adhesive family provides high initial tack, excellent peel and shear performance
  • Glassine paper liner makes for quick release during application
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginGermany
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)25.4
Overall Width (Metric) UOMmm
Back Side Adhesive Thickness (Imperial) UOMmil
Master Size Length (Metric) UOMm
Master Size Width (Metric)137.0
Carrier Thickness (Metric)0.013
Face Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial) UOMmil
ApplicationZero-Speed and General Splicing
Primary Liner Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)121.0
Product FormRoll
Primary Liner Thickness (Metric)0.08
Back Side Adhesive Thickness (Imperial)3.5
Maximum Operating Temperature (Fahrenheit)250.0
Units per Case18.0
Back Side Adhesive Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial)3.0
Minimum Operating Temperature (Celsius) UOMDegree
Indoor/OutdoorBoth
Minimum Operating Temperature (Celsius)-40.0
Primary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)7.5
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Length (Imperial) UOMyd
Overall Thickness (Imperial)7.5
Adhesive TypeModified Acrylic
Overall Length (Metric) UOMm
Face Side Adhesive Thickness (Imperial)3.5
Face Side Adhesive Thickness (Metric)0.09
Primary Liner ColorWhite
Total Tape Thickness without Liner (Imperial) UOMmil
Product ColorWhite
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)55.0
Carrier MaterialTissue
Master Size Length (Metric)150.9
IndustriesConverter Solutions, General Industrial, Point of Purchase, Signage
Total Tape Thickness without Liner (Metric)0.19
Face Side Adhesive Thickness (Metric) UOMmm
Overall Width (Imperial)1.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial)0.5
Primary LinerGlassine Paper
Overall Length (Metric)50.29
Carrier Thickness (Metric) UOMmm
Master Size Width (Metric) UOMcm
Overall Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Face Side Adhesive TypeHigh Performance Adhesive 375
Backing (Carrier) Thickness (Metric)0.013
Backing (Carrier) MaterialTissue
