3M™ High Shear Pressure Sensitive Cover Tape 2668, 9.0 mm, 0.8 mm Adhesive Exposure, 500 m/Roll, 25/Case - 7100253936

Sold As: 25-Pack
SKU: 7100253936
MPN: 7100253936
Lead Time: 48 working days.
UPC: 08887862426214
3M ID: XA006831748
5 Digit UPC: 42621
$1,880.33 ($75.21 / Count)
Hurry up! Current stock:

Product Description

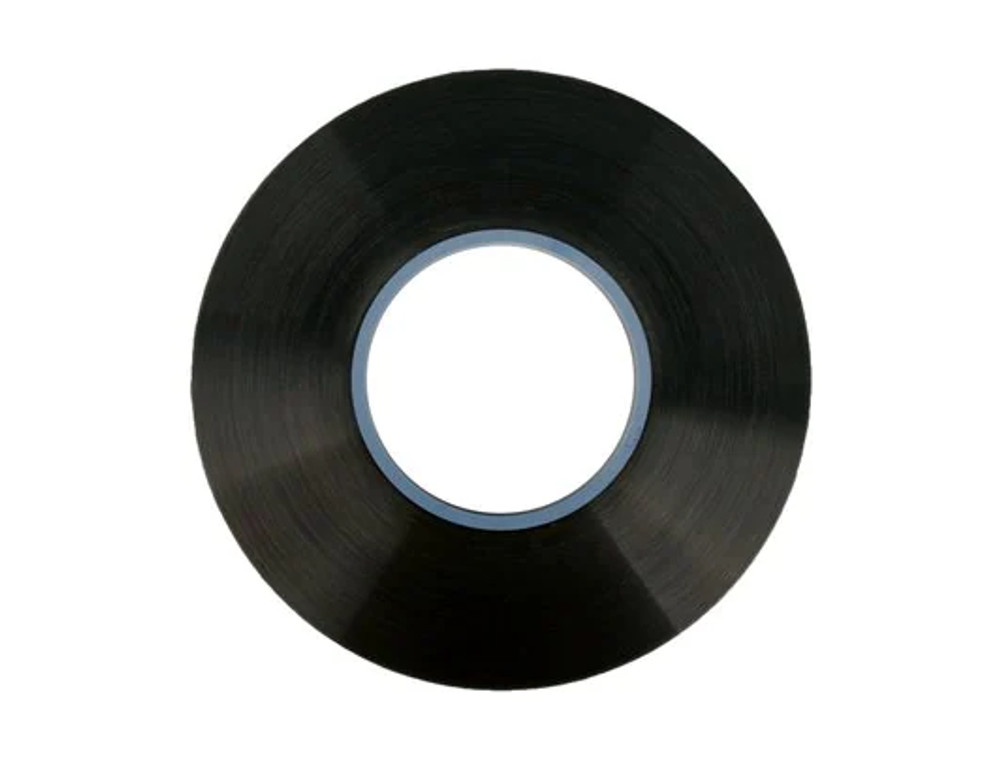

3M™ High Shear Pressure Sensitive Cover Tape 2668 is a transparent polyester tape with a synthetic, room temperature pressure sensitive adhesive (PSA) zone along each edge.

Features

  • Contact 3M for information on other width options
  • Suitable for components like WLCSP
  • Adhesive zones help reduce the risk of adhesive contamination or contact with devices during shipping and storage
  • Reworkable and bakeable
  • Works well on 3M™ Polycarbonate Carrier Tapes
  • 300 m or 500 m rolls are available in standard widths of 5.4 mm, 9.3 mm, 13.3 mm, 21.3 mm, 25.5 mm, 37.4 mm and 49.4 mm
Spec Sheet



Downloads

Specifications

Country of OriginSingapore
Minimum Sealing Temperature (Fahrenheit)73.0
Overall Thickness (Metric) UOMmm
Maximum Sealing Temperature (Fahrenheit)73.0
Overall Width (Metric)9.0
Backing (Carrier) MaterialPolyester Film
Overall Thickness (Metric)0.061
Overall Thickness (Imperial)0.0024
Overall Thickness (Imperial) UOMin
Overall Length (Metric)500.0
Overall Width (Imperial)0.354
Overall Width (Metric) UOMmm
Minimum Sealing Temperature (Celsius)23.0
Product UsageDiscrete Components; LEDs; Passive Components; WLCSP
Overall Width (Imperial) UOMin
Haze Percentage6.0
Overall Length (Imperial) UOMyd
Maximum Sealing Temperature (Celsius)23.0
Overall Length (Metric) UOMm
Elongation90.0 %
ESD Material TypeConductive
Overall Length (Imperial)546.807
