3M Products & Supplies

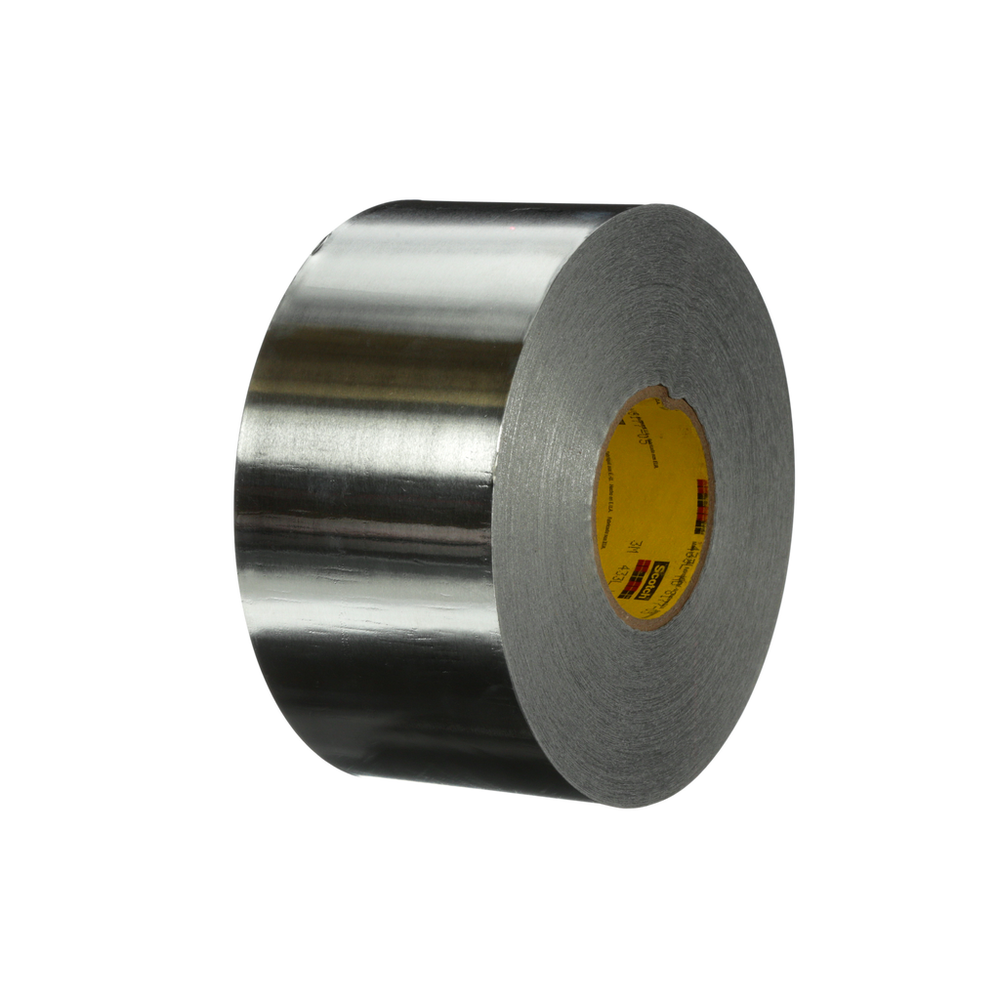

3M™ High Temperature Aluminum Foil Tape 433L, Silver, 3 in x 60 yd, 3.5 mil, 3 Rolls/Case - 7100236509

Sold As: 21-Pack
SKU: 7100236509
MPN: 7100236509
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060407264
3M ID: 70007544284
5 Digit UPC: 40726
$10,189.70 ($485.22 / Count)
Hurry up! Current stock:

Product Description

For heat shielding applications such as wrapping over and along thermal insulation, use 3M™ High Temperature Aluminum Foil Tape 433L. This dead soft aluminum foil tape is coated with a clear silicone pressure sensitive adhesive that bonds well to a variety of surfaces and excels in high temperature applications, where other adhesive tapes may fail.

Features

  • Thermally conductive tape helps dissipate heat to protect temperature sensitive materials
  • Linered version of our 3M™ High Temperature Aluminum Foil Tape 433
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
  • Flame resistant – meets requirements of F.A.R. 25.853(a)
  • Can withstand limited exposure up to 600ºF/316ºC for heat shielding applications
  • Can be used to improve heating and cooling efficiency
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Maximum Operating Temperature (Celsius)316.0
Primary LinerEasy Release Film
Overall Length (Metric) UOMm
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Adhesive TypeSilicone
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial)2.0
Maximum Operating Temperature (Fahrenheit)600.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial)20.0
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military, Military and Government, Specialty Vehicles, Transportation
Tensile Strength (Metric)35.0
Tensile Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Overall Length (Imperial)60.0
Minimum Operating Temperature (Fahrenheit)-65.0
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-54.0
Product ColorSilver
Specifications MetFAR 25.853(a)
Overall Width (Imperial)3.0
Elongation at Break3.5
Overall Length (Metric)54.864
Backing MaterialAluminum Foil
Overall Width (Metric) UOMmm
Overall Width (Metric)76.2
Backing (Carrier) Thickness (Metric)0.05
Shelf Life UOMMonth
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)3.5
Back Side Adhesive Thickness (Imperial)1.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
