3M Products & Supplies

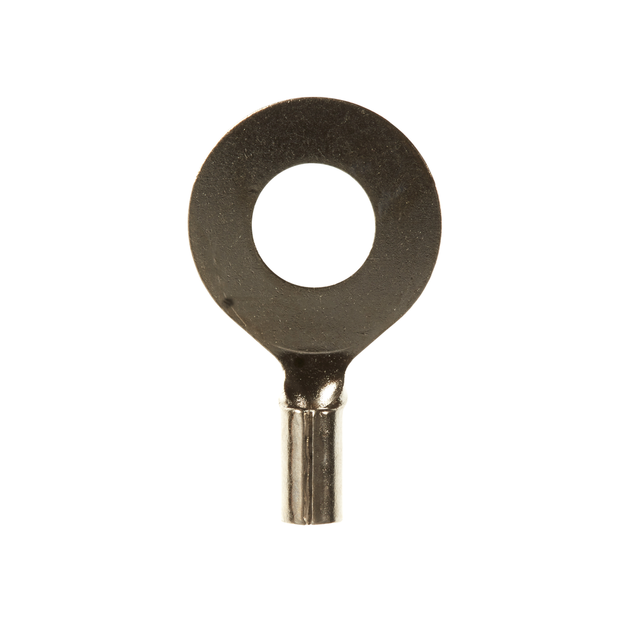

3M™ High Temperature Butted Seam Ring Tongue Terminal HT-16-38, for use in ovens, motors, light fixtures and other applications - 7100163798

Sold As: 1000-Pack
SKU: 7100163798
MPN: 7100163798
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007293651
3M ID: 80601390877
MPN: HT-16-38
$794.13 ($0.79 / Count)
Hurry up! Current stock:

Product Description

3M™ High-Temperature Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.

Features

  • Beveled mouth offers easy insertion of wires
  • Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • For use in ovens, motors, light fixtures and other applications
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

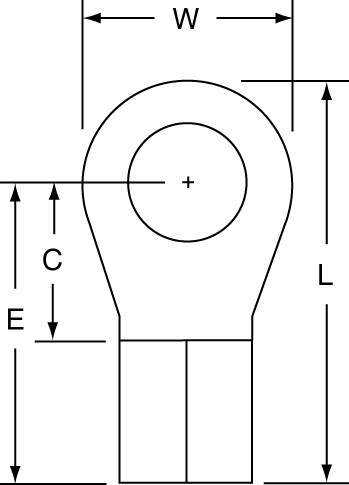

Specifications

Terminal TypeRing
Maximum Conductor Size (Metric)25 mm²
Minimum Conductor Size (Metric)25 mm²
Connection Width (Imperial) UOMin
Connection Width (Metric)9.525
Minimum Conductor Size (Imperial)4 AWG
Maximum Conductor Size (Imperial)4 AWG
Country of OriginUnited States
Connection Width (Imperial)0.375
Connection Width (Metric) UOMmm
