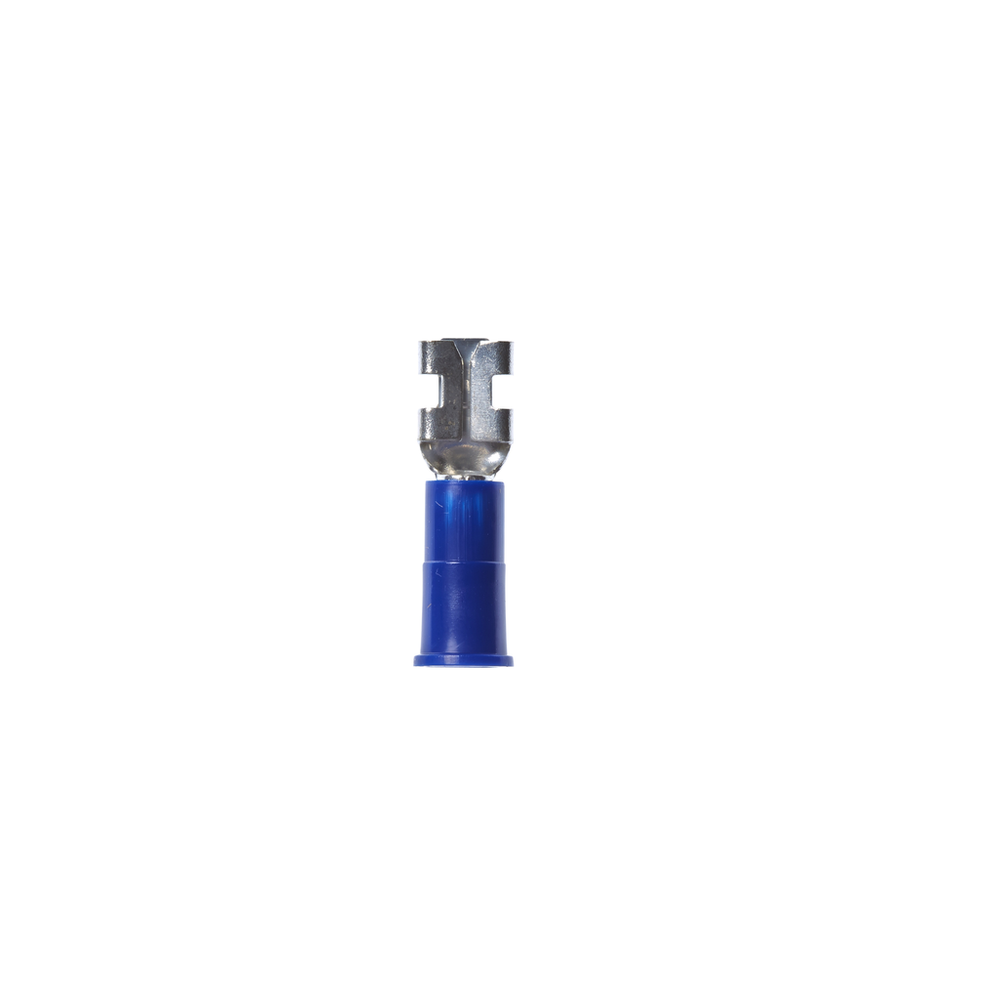

3M™ Highland™ Vinyl Insulated Female Disconnect Terminal FDV14-187Q, AWG 16-14, 25/bag, 10 Bags/Case - 7000133662

Sold As: 10-Pack
SKU: 7000133662
MPN: 7000133662
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600054
3M ID: 80611602667
5 Digit UPC: 60005
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Female Disconnect has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Allows for quick and easy disconnect of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Metric)4.75
Maximum Conductor Size (Metric)2.5 mm²
Terminal TypeDisconnect
Overall Length (Metric)19.812
Maximum Insulation Outer Diameter (Imperial)0.145
Tab Width0.187
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Conductor Sizes (Imperial)16 - 14 AWG
Disconnect TypeFemale
UL File NumberE70512
Packaging25 per bag
Max. Number of Cores417.0
Barrel Length (Imperial)0.25 Inch
Mates with Female Width0.187 Inch
Overall Length (Metric) UOMmm
Maximum Insulation Outside Diameter0.145 in
Terminal StyleStandard
Connection Width (Imperial) UOMin
Barrel Inside Diameter0.085 Inch
Overall Length (Imperial) UOMin
Units per bag25
Maximum Conductor Size (Imperial)14 AWG
Maximum Voltage Rating600 to 1000 V
Connection Width (Imperial)0.187
Insulation MaterialVinyl
Barrel Length (Metric)6.35 mm
Overall Length (Imperial)0.78
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Recommended Voltage Rating600.0
Minimum Conductor Size (Imperial)16 AWG
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Recommended Voltage Rating UOMV
Connection Width (Metric) UOMmm
Minimum Conductor Size (Metric)1.5 mm²
Fastener OrientationFemale
Mates with Male Tab Width (W')0.187 Inch
MaterialPlastic
Units per Case10.0
Pad Width0.187
Barrel StyleButted
Maximum Insulation Outer Diameter (Metric)3.7
