3M Products & Supplies

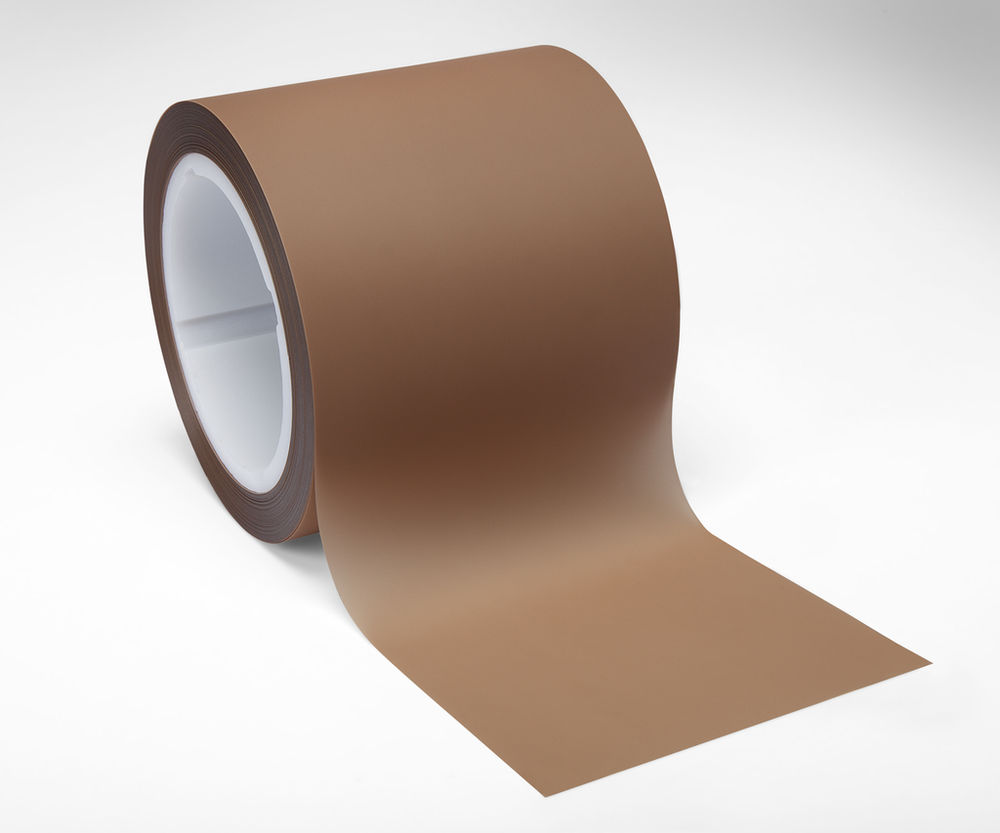

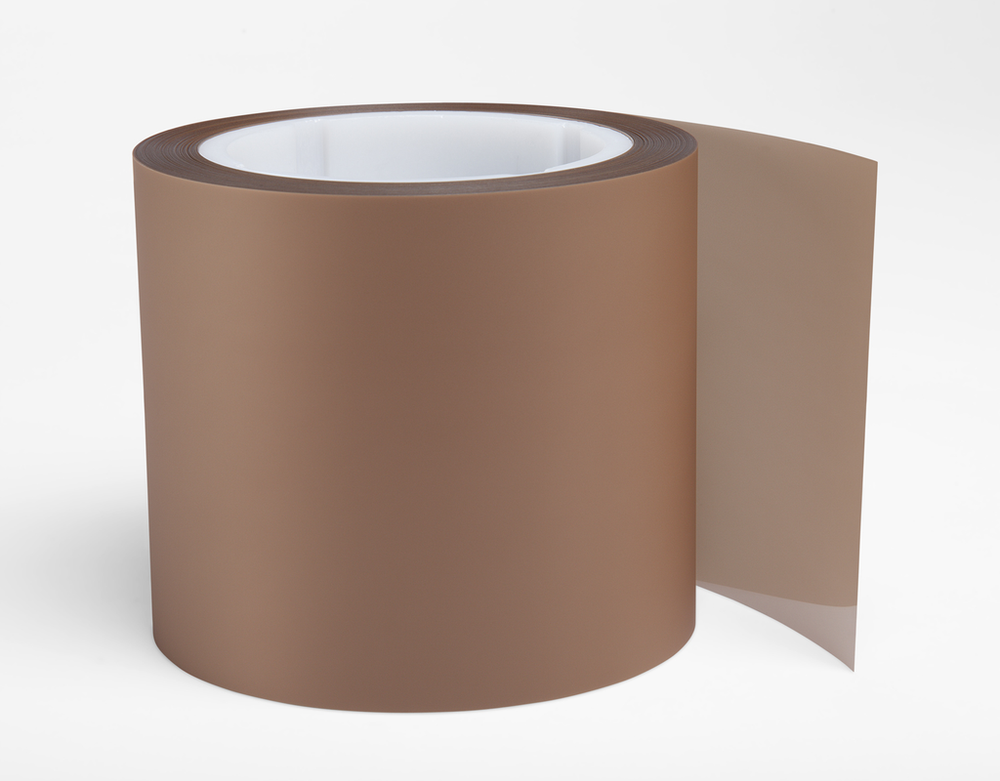

3M™ Lapping Film 261X, 5.0 Micron Roll, 4 in x 150 ft x 3 in ASO Keyed Core, 4/Case - 7000000324

Sold As: 4-Pack
SKU: 7000000324
MPN: 7000000324
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051144140893
3M ID: 60200002099
5 Digit UPC: 14089
$626.38 ($156.59 / Count)
Hurry up! Current stock:

Product Description

3M™ Lapping Film Roll 261X is the standard of 3M’s lapping films. The product is made from precisely graded aluminum oxide particles coated on a 3 mil polyester film. The product provides uniform finishes on various substrates and delivers consistent cut rate, finish and life.

Features

  • Consistent cut rate, finish and life
  • Available in discs, sheets and rolls
  • Get a uniform finish on a number of substrates
  • Tight particle distribution
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Attachment TypePlain Back
Backing Thickness (Metric)0.076
Product FormRoll
Overall Diameter (Imperial)0.0
Overall Length (Imperial) UOMft
Backing Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Overall Length (Imperial)150.0
Center Hole Diameter (Metric)0.0
Product UsageFiber Optic Connectors
Overall Length (Metric)45.72
Backing Thickness (Metric) UOMmm
Backing Thickness (Imperial)3.0
Product ColorBrown
Overall Width (Imperial)4.0
Overall Length (Metric) UOMm
Overall Width (Metric)101.6
Overall Diameter (Metric)0.0
Center Hole Diameter (Imperial)0.0
Specifications MetRoHS 2011/65/EU
Abrasive MaterialAluminum Oxide
Overall Width (Metric) UOMmm
Product Series261X
Micron Grade5 μm
SubstrateCeramic; Glass; High-hardness Metal; Metal; Plastic; Quartz; Sapphire; Silicon Carbide
ApplicationFinishing; Flat Lapping; Polishing; Superfinishing
Backing MaterialPolyester Film
