3M Products & Supplies

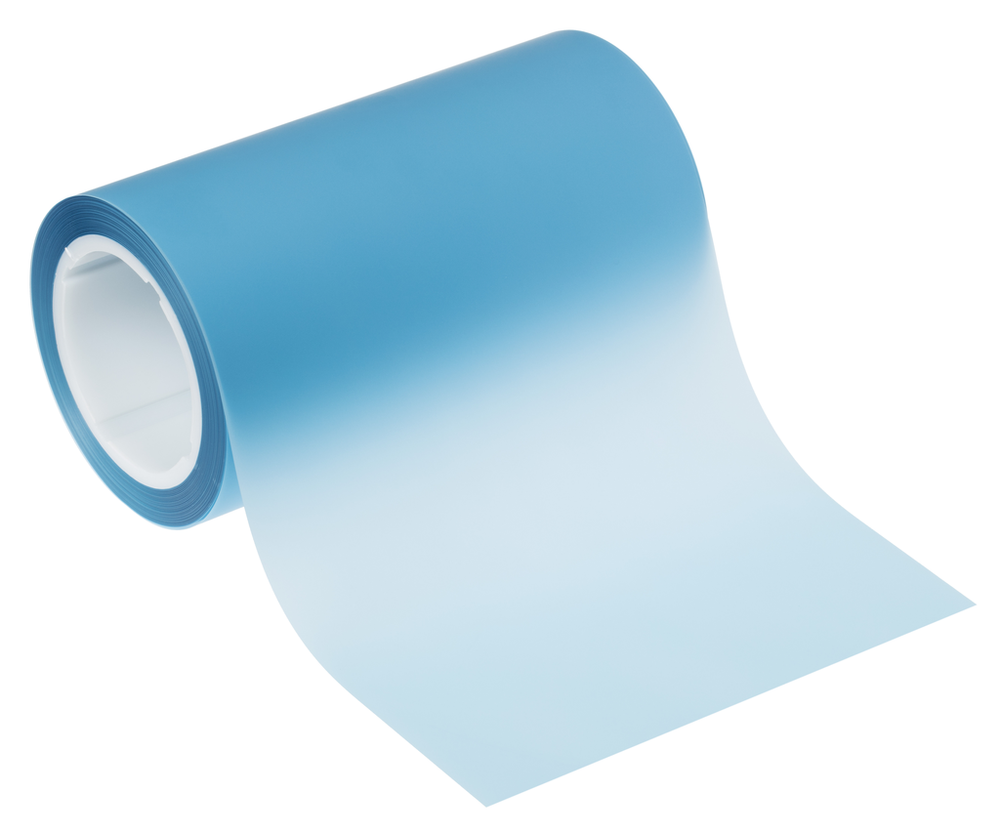

3M™ Lapping Film Roll 261X, 9.0 Micron, 3 mil, 8 in x 150 ft x 3 in, 2 Rolls/Case - 7010519466

Sold As: 2-Pack
SKU: 7010519466
MPN: 7010519466
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060823941
3M ID: WN300018259
5 Digit UPC: 82394
$584.33 ($292.17 / Count)
Hurry up! Current stock:

Product Description

3M™ Lapping Film Roll 261X is the standard of 3M’s lapping films. The product is made from precisely graded aluminum oxide particles coated on a 3 mil polyester film. The product provides uniform finishes on various substrates and delivers consistent cut rate, finish and life.

Features

  • Tight particle distribution
  • Available in discs, sheets and rolls
  • Consistent cut rate, finish and life
  • Get a uniform finish on a number of substrates
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Abrasive MaterialAluminum Oxide
Backing Thickness (Imperial)3.0
Micron Grade9 μm
Backing Thickness (Metric)0.076
Product UsageFiber Optic Connectors
Overall Width (Imperial)8.0
Specifications MetRoHS 2011/65/EU
Product ColorBlue
Overall Diameter (Imperial)0.0
Attachment TypePlain Back
SubstrateCeramic; Glass; High-hardness Metal; Metal; Plastic; Quartz; Sapphire; Silicon Carbide
Overall Length (Imperial) UOMft
Overall Width (Metric) UOMmm
Product Series261X
Center Hole Diameter (Metric)0.0
Backing Thickness (Metric) UOMmm
Backing MaterialPolyester Film
ApplicationFinishing; Flat Lapping; Polishing; Superfinishing
Overall Diameter (Metric)0.0
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
Product FormRoll
Overall Length (Imperial)150.0
Overall Width (Metric)203.2
Overall Length (Metric)45.72
Center Hole Diameter (Imperial)0.0
Backing Thickness (Imperial) UOMmil
