3M Products & Supplies

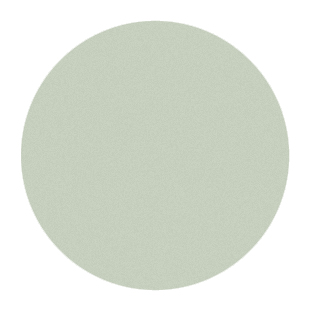

3M™ Lapping Film 262X, 1 Micron Disc, 9 in X 13 in - 7100166904

Sold As: 200-Pack
SKU: 7100166904
MPN: 7100166904
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060823996
3M ID: 60000602361
5 Digit UPC: 82399
$729.65 ($3.65 / Count)
Hurry up! Current stock:

Product Description

Aluminum oxide mineral coated on 3 mil polyester film with a softer resin system, in grades 1.0 and 2.0 micron. Used in polishing fiber optics as well as precision lapping operations. Provides smooth surface on precision electronic parts.

Features

  • Softer resin than other aluminum oxide products
  • Consistent cut rate, finish and life
  • Available in discs, sheets and rolls
  • Tight particle distribution
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Metric)0.0
Overall Length (Metric)0.0
Backing Thickness (Imperial) UOMmil
Center Hole Diameter (Imperial)0.0
Product FormDisc
Overall Diameter (Metric)228.6
Backing MaterialPolyester Film
Backing Thickness (Metric) UOMmm
Backing Thickness (Metric)0.076
Product ColorBlue Green
Attachment TypePlain Back
Overall Diameter (Imperial)9.0
Overall Diameter (Metric) UOMmm
Backing Thickness (Imperial)3.0
Center Hole Diameter (Metric)0.0
SubstrateCeramic; Glass; High-hardness Metal; Metal; Plastic; Silicon Carbide
Micron Grade1 μm
ApplicationFinishing; Flat Lapping; Lapping; Superfinishing
Overall Length (Imperial)0.0
Overall Width (Imperial)0.0
Overall Diameter (Imperial) UOMin
Abrasive MaterialAluminum Oxide
Product Series262X
Product UsageFiber Optic Connectors
