3M Products & Supplies

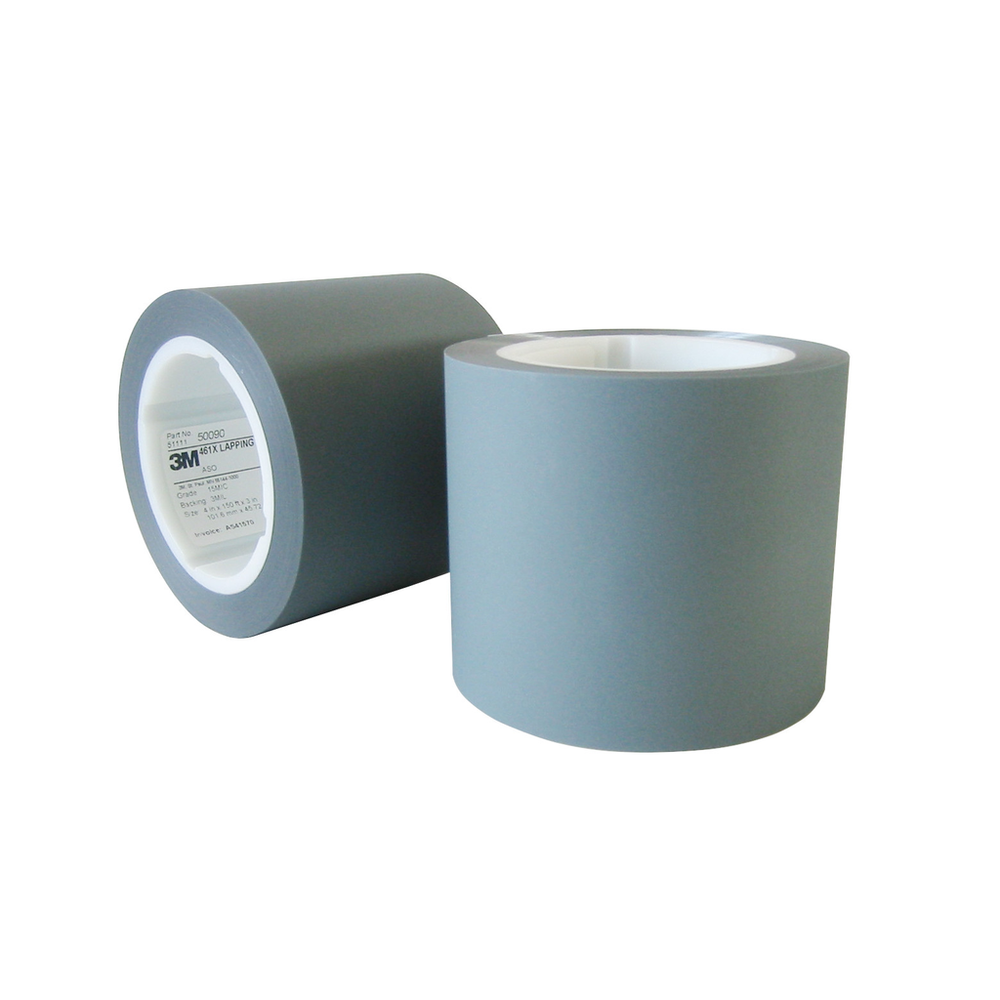

3M™ Lapping Film 461X, 15 micron, 3 mil, SC TC, 4.5 in x 4.5 in - 7100199780

Sold As: 500-Pack
SKU: 7100199780
MPN: 7100199780
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060823859
3M ID: UU010251393
5 Digit UPC: 82385
$431.31 ($0.86 / Count)
Hurry up! Current stock:

Product Description

Silicon carbide mineral coated on a 3 mil polyester film. Available in 5.0, 9.0, 15.0 and 30.0 micron and is our standard product for silicon carbide related polishing applications in the fiber optic and metallurgical industries.

Features

  • Available in a variety of micron grades (5.0, 9.0, 15.0, and 30.0)
  • Available in discs, sheets and rolls
  • Tight particle distribution
  • Consistent cut rate, finish and life
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)4.5
Overall Length (Imperial)4.5
Product Series461X
Overall Width (Metric) UOMmm
Product UsageFiber Optic Connectors
Overall Diameter (Metric)0.0
Center Hole Diameter (Imperial)0.0
Overall Length (Imperial) UOMin
SubstrateCeramic; Glass; High-hardness Metal; Metal; Plastic; Quartz; Sapphire; Silicon Carbide
Overall Width (Imperial) UOMin
Backing Thickness (Metric)0.076
Abrasive MaterialSilicon Carbide
Micron Grade15 μm
Overall Width (Metric)114.3
Backing Thickness (Imperial)3.0
Backing MaterialPolyester Film
Backing Thickness (Imperial) UOMmil
Overall Length (Metric) UOMmm
Product ColorGray
Attachment TypePlain Back
ApplicationFlat Lapping; Polishing; Superfinishing
Overall Diameter (Imperial)0.0
Overall Length (Metric)114.3
Backing Thickness (Metric) UOMmm
Center Hole Diameter (Metric)0.0
Product FormSheet
