3M Products & Supplies

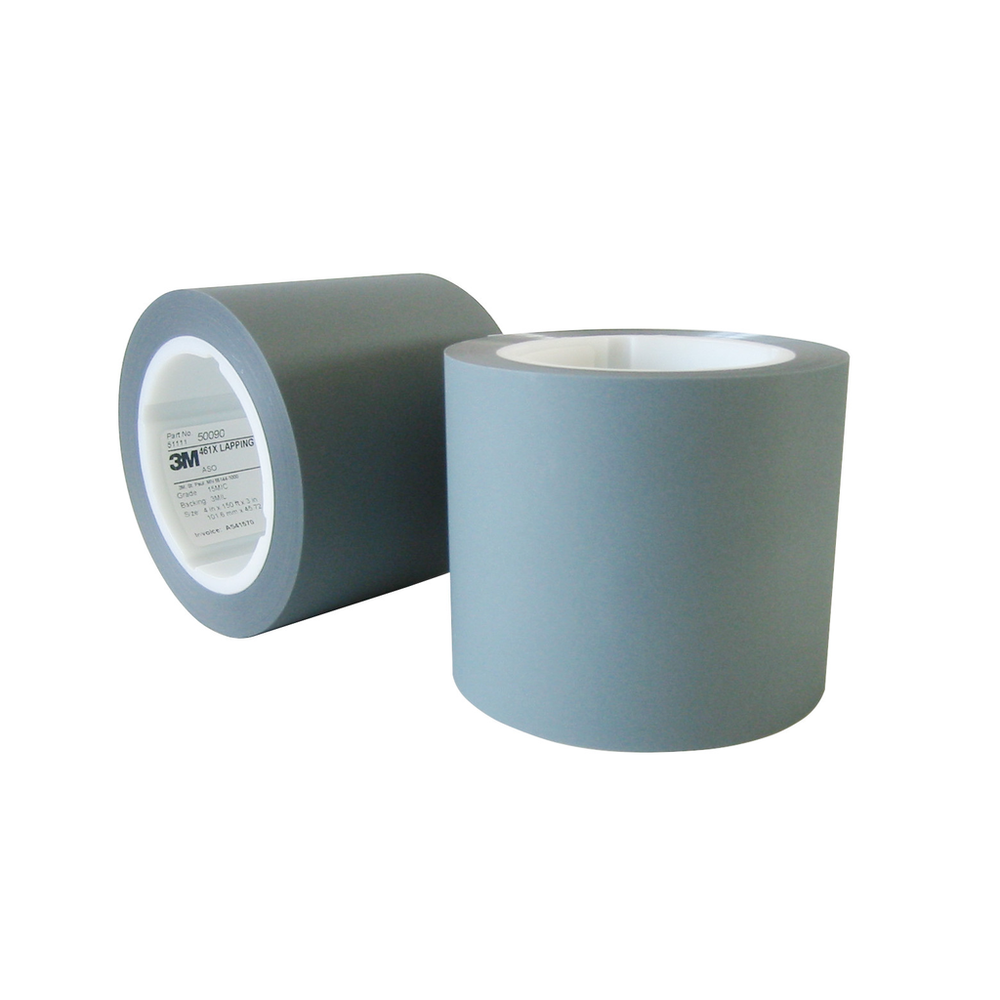

3M™ Lapping Film 461X, 5 mic, 3 mil, 9 in x 13 in - 7100166898

SKU: 7100166898
MPN: 7100166898
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: 60000602197
$2.19 each
Hurry up! Current stock:

Product Description

Silicon carbide mineral coated on a 3 mil polyester film. Available in 5.0, 9.0, 15.0 and 30.0 micron and is our standard product for silicon carbide related polishing applications in the fiber optic and metallurgical industries.

Features

  • Available in discs, sheets and rolls
  • Available in a variety of micron grades (5.0, 9.0, 15.0, and 30.0)
  • Tight particle distribution
  • Consistent cut rate, finish and life
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Diameter (Imperial)0.0
Center Hole Diameter (Imperial)0.0
Overall Width (Metric) UOMmm
Center Hole Diameter (Metric)0.0
Product UsageFiber Optic Connectors
Overall Diameter (Metric)0.0
Backing Thickness (Imperial)3.0
Product ColorGray
ApplicationFlat Lapping; Polishing; Superfinishing
Backing MaterialPolyester Film
Overall Length (Metric) UOMmm
Product Series461X
Abrasive MaterialSilicon Carbide
Overall Length (Imperial) UOMin
Backing Thickness (Imperial) UOMmil
Backing Thickness (Metric) UOMmm
Product FormSheet
Overall Width (Metric)228.6
Overall Length (Metric)330.2
Overall Width (Imperial) UOMin
SubstrateCeramic; Glass; High-hardness Metal; Metal; Plastic; Quartz; Sapphire; Silicon Carbide
Overall Length (Imperial)13.0
Overall Width (Imperial)9.0
Backing Thickness (Metric)0.076
Micron Grade5 μm
Attachment TypePlain Back
