3M™ Lapping Film 468XW, Discs, 3.0 Micron PSA, 5 in x NH, Die Number 500 COR, Bulk - 7100286846

Sold As: 4000-Pack
SKU: 7100286846
MPN: 7100286846
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060910269
3M ID: 60250010125
$3,399.08 ($0.85 / Count)
Hurry up! Current stock:

Product Description

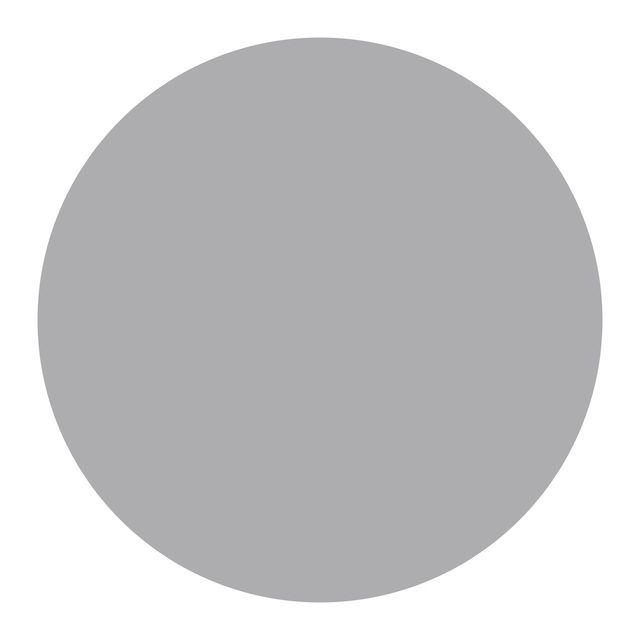

Silicon carbide mineral coated on 3 mil polyester film with PSA back. Available in 3.0 micron and is our standard product for silicon carbide related polishing applications in the fiber optic and metallurgical industries.

Features

  • Tight particle distribution
  • Consistent cut rate, finish and life
  • Easy breakdown resin for MT connector polishing
  • Available in discs, sheets and rolls

Downloads

Specifications

Country of OriginUnited States
Attachment TypePSA Back
Abrasive MaterialSilicon Carbide
Overall Diameter (Imperial) UOMin
Center Hole Diameter (Imperial)0.0
Overall Diameter (Imperial)5.0
Overall Width (Metric)0.0
Product UsageFiber Optic Connectors
Product ColorGray
Backing Thickness (Metric) UOMmm
Product FormDisc
Center Hole Diameter (Metric)0.0
Overall Length (Metric)0.0
Overall Diameter (Metric)127.0
Overall Width (Imperial)0.0
Backing Thickness (Imperial)3.0
Product Series468XW
Micron Grade3 μm
SubstrateCeramic; Glass; High-hardness Metal; Metal; Plastic; Silicon Carbide
ApplicationFlat Lapping; Polishing; Superfinishing
Backing MaterialPolyester Film
Overall Length (Imperial)0.0
Backing Thickness (Imperial) UOMmil
Overall Diameter (Metric) UOMmm
Backing Thickness (Metric)0.076
