3M Products & Supplies

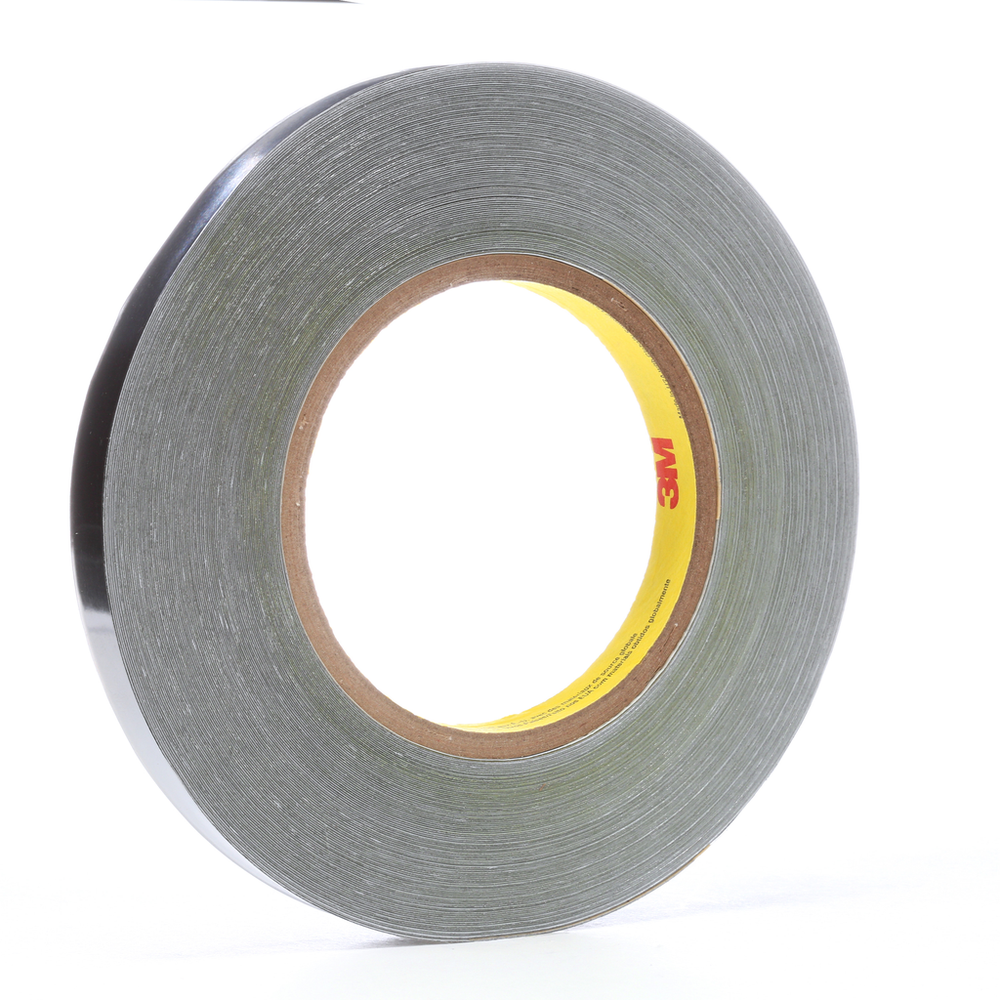

3M™ Lead Foil Tape 420, Dark Silver, 5/8 in x 36 yd, 6.8 mil, 12 Rolls/Case - 7100221191

Sold As: 36-Pack
SKU: 7100221191
MPN: 7100221191
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060406113
3M ID: 70007543245
5 Digit UPC: 40611
$3,539.39 ($98.32 / Count)
Hurry up! Current stock:

Product Description

3M™ Lead Foil Tape 420 is an electrically and thermally conductive tape. This highly conformable tape resists flame, moisture, weather, UV degradation, chemicals and radiation. Mated with an easy-release film liner, this malleable tape can be shaped into complex or detailed patterns or die-cut into specific shapes to meet assembly and manufacturing process needs.

Features

  • Performs over a wide variety of temperatures
  • Liner allows tape to be die-cut into specific shapes for assembly and manufacturing processes
  • The rubber-based adhesive bonds well to a variety of surfaces, including most metals
  • Conformable tape resists flame, moisture, weather, UV degradation, and many chemicals used in electroplating and anodizing processes
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Back Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-51.0
Minimum Operating Temperature (Celsius) UOMDegree
Elongation at Break12
Tensile Strength (Metric)35.0
Product ColorDark Silver
Overall Length (Metric) UOMm
Specifications MetASTM D3652, ASTM D3759, ASTM D3833
Backing (Carrier) Thickness (Metric)0.13
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Metric)32.918
Shelf Life UOMMonth
Minimum Operating Temperature (Fahrenheit)-60.0
Tensile Strength (Imperial)20.0
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric)0.17
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Metric) UOMN/100mm
Adhesive TypeRubber
Maximum Operating Temperature (Fahrenheit)225.0
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) Thickness (Imperial)5.0
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Metric)15.875
Back Side Adhesive Thickness (Imperial)2.1
Overall Width (Imperial)0.625
Total Tape Thickness without Liner (Imperial)6.8
Overall Length (Imperial)36.0
Backing (Carrier) MaterialLead Foil
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)107.0
