3M™ Lead Foil Tape 421, Dark Silver, 1 in x 36 yd, 6.3 mil, 9 Roll/Case - 7010302197

Sold As: 9-Pack
SKU: 7010302197
MPN: 7010302197
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051138953089
3M ID: 70006387263
5 Digit UPC: 95308
$1,047.40 ($116.38 / Count)
Hurry up! Current stock:

Product Description

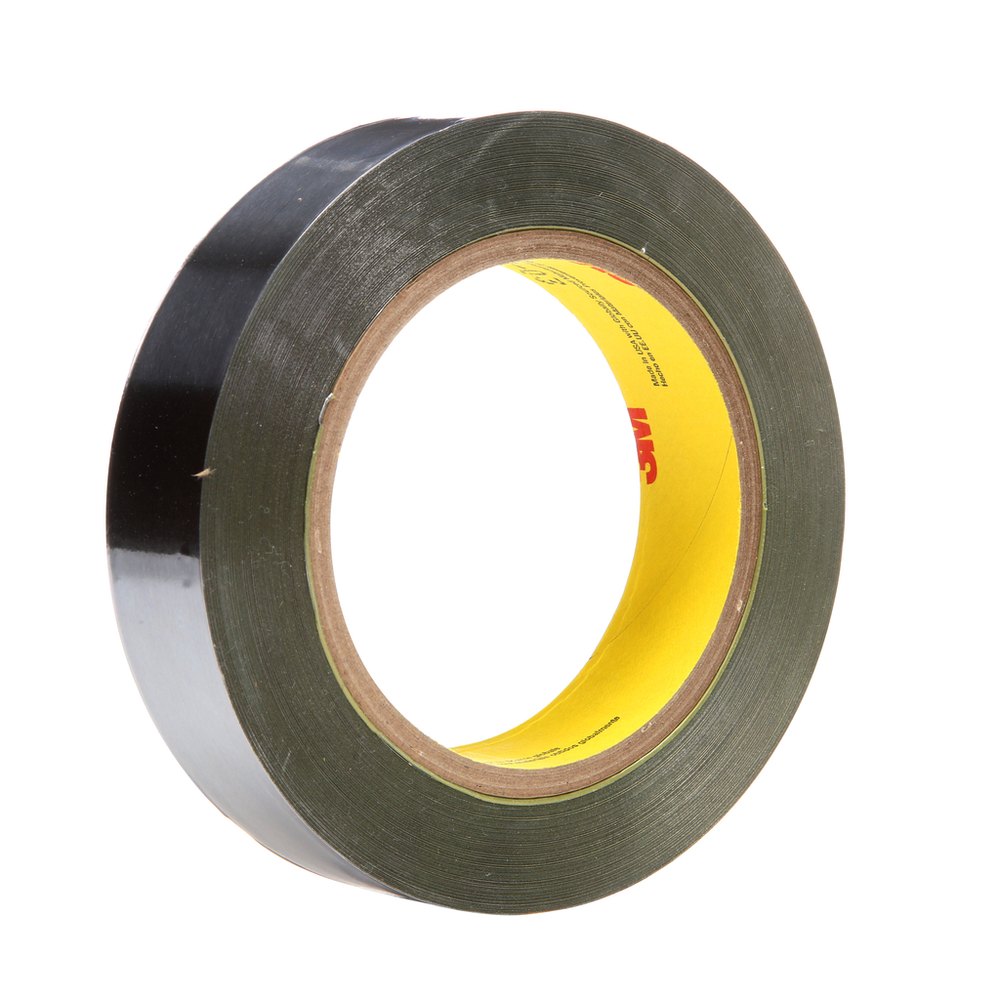

3M™ Lead Foil Tape 421 Is an electrically and thermally conductive tape. This highly conformable tape resists flame, moisture, weather, UV degradation, chemicals and radiation. The malleable tape can be shaped into complex or detailed patterns or die-cut into specific shapes to meet assembly and manufacturing process needs.

Features

  • Conformable tape resists flame, moisture, weather, UV degradation, and many chemicals
  • The rubber-based adhesive combined with the rugged, durable backing provides long service life
  • Performs over a wide variety of temperature conditions and is heat reflective
  • Heat and light reflective tape protects, insulates and enhances lighting efficiency
  • Can be die-cut into specific shapes for assembly and manufacturing processes
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Length (Imperial) UOMyd
Tensile Strength (Metric)26.3
Overall Length (Imperial)36.0
Maximum Operating Temperature (Fahrenheit)225.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)32.91
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)25.4
Overall Width (Imperial) UOMin
Elongation at Break14
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Imperial)4.0
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)-60.0
Shelf Life UOMMonth
Total Tape Thickness without Liner (Imperial)6.3
Tensile Strength (Imperial)15.0
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric)0.1
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius)-51.0
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Product ColorDark Silver
Tensile Strength (Metric) UOMN/100mm
Back Side Adhesive Thickness (Metric)0.1
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) MaterialLead Foil
Overall Width (Imperial)1.0
Units per Case9.0
Maximum Operating Temperature (Celsius)107.0
Total Tape Thickness without Liner (Imperial) UOMmil
Back Side Adhesive Thickness (Metric) UOMmm
Adhesive TypeRubber
Total Tape Thickness without Liner (Metric)0.16
