3M Products & Supplies

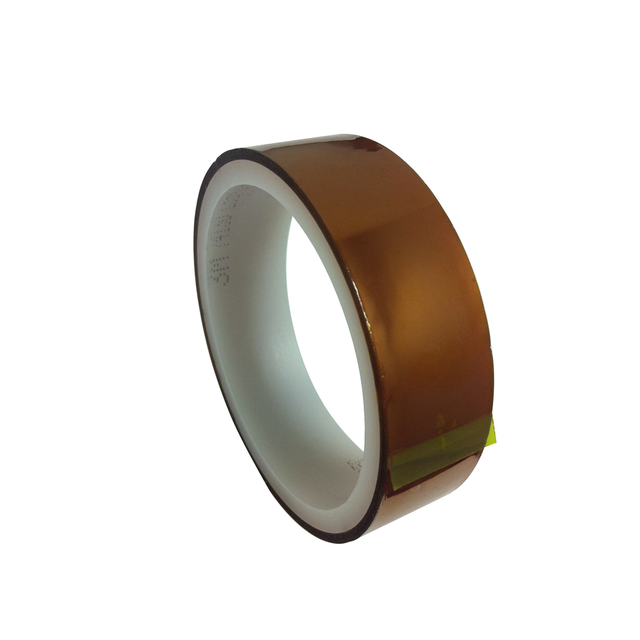

3M™ Linered Low-Static Non-Silicone Polyimide Film Tape 7419L, 610 mm x 33 m - 7010412337

SKU: 7010412337
MPN: 7010412337
Lead Time: 31 working days.
UPC: 051115530456
3M ID: 70006461324
5 Digit UPC: 53045
$2,403.93 each
Hurry up! Current stock:

Product Description

3M™ Linered Low-Static Non-Silicone Polyimide Film Tape 7419L with DuPont™ Kapton® polyimide film, acrylic adhesive and polyester liner is amber-colored and used for printed circuit board solder-masking and other high-temperature applications.

Features

  • Non-silicone adhesive formulation helps eliminate the potential for silicone contamination which can interfere with subsequent bonding or conformal-coating operations
  • A linered version of 3M™ Low-Static Non-Silicone Polyimide Film Tape 7419, Amber
  • See Technical Data Sheet for product details
  • The high-temperature acrylic adhesive also has excellent chemical resistance and should be considered for demanding chemical masking applications
  • Product is wound on a polyethylene tape core

Downloads

Specifications

Backing (Carrier) MaterialPolyester
Total Tape Thickness without Liner (Imperial)1.81 mil
Application CategoryProtection
Temperature Range (Celsius)-40 °C to 155 °C
Product FormRoll
Total Thickness1.81 mil
Overall Width (Metric)610 mm
Adhesive TypeAcrylic
Overall Width (Imperial)24.0157 in
Temperature Range (Fahrenheit)-40 °F to 311 °F
Total Tape Thickness without Liner (Metric)0.046 mm
Product ColorBrown
