3M Products & Supplies

3M™ Locking Fork, Nylon Insulated w/Insulation Grip 16-14 AWG, 94868, SS-32-10-NB - 7010397423

Sold As: 10-Pack
SKU: 7010397423
MPN: 7010397423
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007948681
3M ID: 80611253685
MPN: 94868
$245.06 ($24.51 / Count)
Hurry up! Current stock:

Product Description

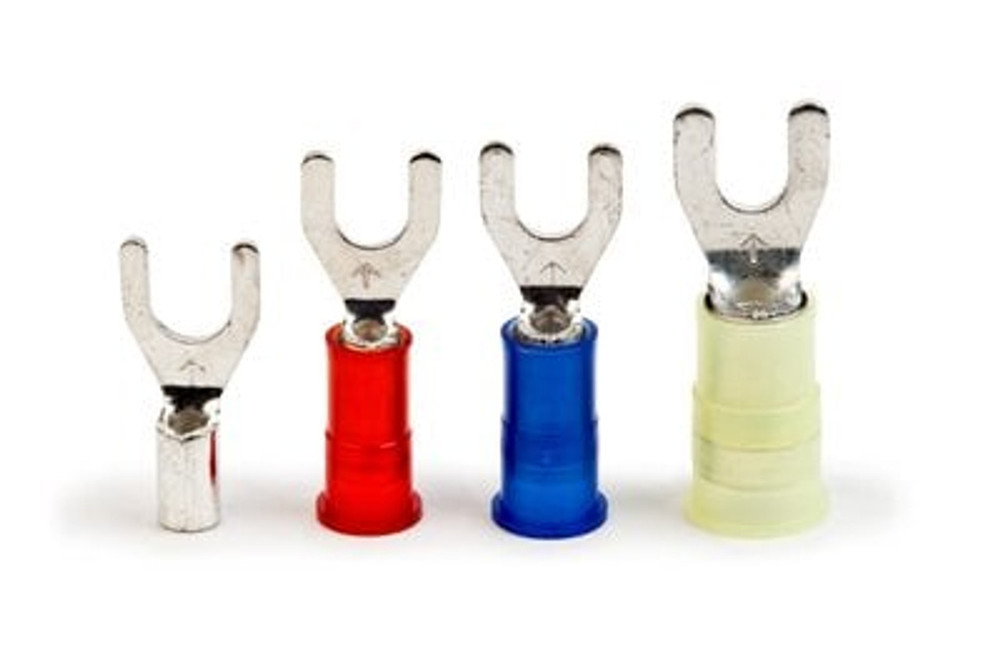

3M™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Spring-like tongue firmly fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Maximum Operating Temperature (Celsius)105.0
Country of OriginUnited States
Minimum Conductor Size (Metric)1.31 mm²
Maximum Operating Temperature (Celsius) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialNylon with Insulation Grip
Maximum Conductor Size (Imperial)14 AWG
Barrel StyleButted
Maximum Conductor Size (Metric)2.08 mm²
Fork TypeLocking
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Terminal StyleLocking
