3M Products & Supplies

3M™ Locking Fork, Vinyl Insulated Butted Seam 16-14 AWG, 94871, SS-32-14-P - 7100164991

Sold As: 10-Pack
SKU: 7100164991
MPN: 7100164991
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007948711
3M ID: 80611253719
MPN: 94871
$222.73 ($22.27 / Count)
Hurry up! Current stock:

Product Description

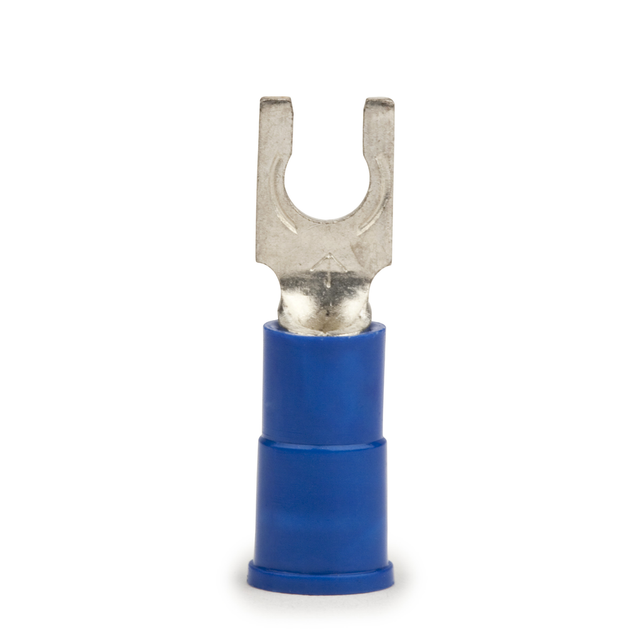

3M™ Highland™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Spring-like tongue firmly fits around the stud
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

Downloads

Specifications

Maximum Conductor Size (Imperial)14 AWG
Maximum Conductor Size (Metric)2.08 mm²
Minimum Conductor Size (Imperial)16 AWG
Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Fork TypeLocking
Terminal TypeFork
Terminal StyleLocking
Barrel StyleButted
Insulation MaterialVinyl
Minimum Conductor Size (Metric)1.31 mm²
