3M Products & Supplies

3M™ Male Disconnect, Fully Nylon Insulated w/Insulation Grip 16-14 AWG, 94827, 72M-250-32-NBL - 7010304077

Sold As: 10-Pack
SKU: 7010304077
MPN: 7010304077
For an accurate lead time please contact us
UPC: 00054007948278
3M ID: 80611253271
MPN: 94827
$318.40 ($31.84 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve allows for easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires

Downloads

Specifications

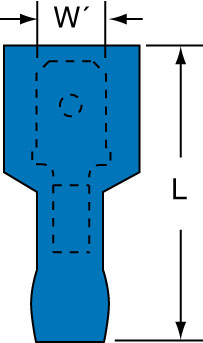

Connection Width (Metric)6.35
Connection Width (Imperial)0.25
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypeDisconnect
Maximum Conductor Size (Metric)2.5 mm²
Connection Width (Metric) UOMmm
Disconnect TypeMale
Connection Width (Imperial) UOMin
Country of OriginUnited States
Minimum Conductor Size (Imperial)16 AWG
Maximum Conductor Size (Imperial)14 AWG
Minimum Conductor Size (Metric)1.5 mm²
