3M Products & Supplies

3M™ Male Disconnect, Fully Nylon Insulated w/Insulation Grip 22-18 AWG, 94806, 71M-187-20-NBL - 7010397403

Sold As: 10-Pack
SKU: 7010397403
MPN: 7010397403
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007948063
3M ID: 80611253065
MPN: 94806
$362.15 ($36.21 / Count)
Hurry up! Current stock:

Product Description

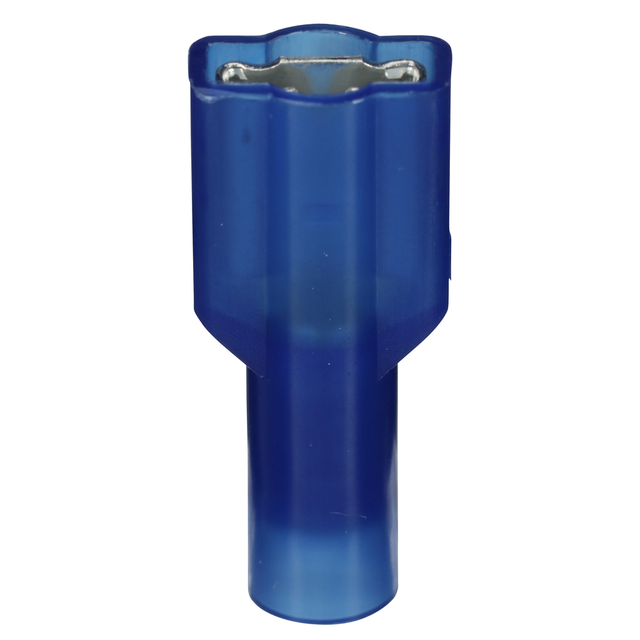

3M™ Highland™ Vinyl Insulated Butted Seam Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Allows for quick and easy disconnect of wires
  • This male disconnect terminal offers excellent holding force
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve allows for easy insertion of wires

Downloads

Specifications

Connection Width (Imperial) UOMin
Maximum Conductor Size (Imperial)18 AWG
Connection Width (Metric)4.75
Connection Width (Metric) UOMmm
Connection Width (Imperial)0.187
Disconnect TypeMale
Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Metric)1 mm²
Minimum Conductor Size (Imperial)22 AWG
Minimum Conductor Size (Metric).34 mm²
Terminal TypeDisconnect
