3M™ Modified Fluoroelastomer Tubing VTN-200-1/4-Black: 200 ft spool length, 1 spool per carton, 1 Roll/Case - 7100030673

Sold As: 200-Pack
SKU: 7100030673
MPN: 7100030673
For an accurate lead time please contact us
UPC: 054007400707
3M ID: 80610252043
5 Digit UPC: 40070
$1,822.08 ($9.11 / Count)
Hurry up! Current stock:

Product Description

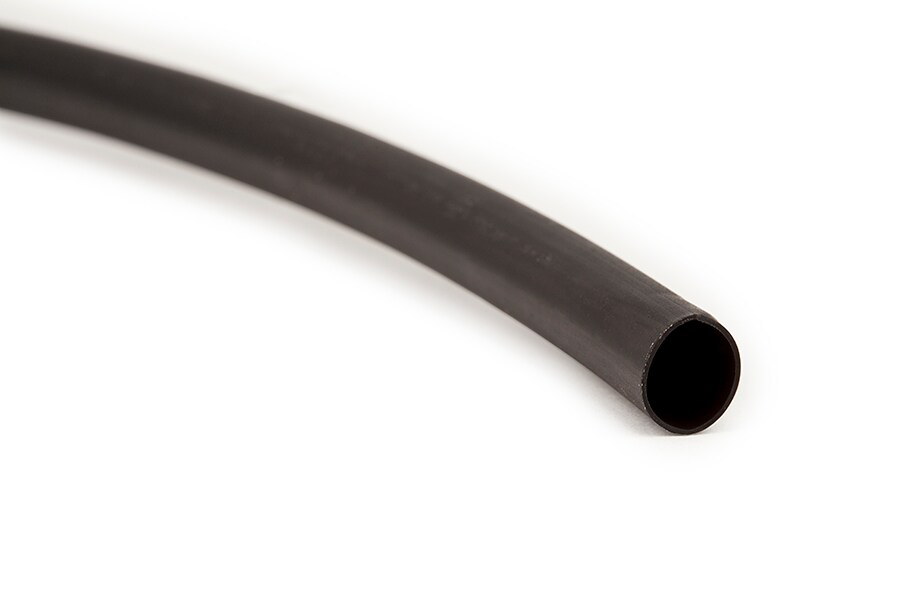

3M™ Heat Shrink Tubing VTN-200 is a flexible tubing that provides high abrasion and cut through resistance, making it perfect for aircraft/aerospace applications. This tubing has a 2:1 shrink ratio and fluoroelastomer construction that offers superior resistance to a broad range of chemicals.

Features

  • Flame-retardant
  • Withstands temperatures of -67 to 392 degrees F (-55 to 200 degrees C)
  • Made of black flexible fluoroelastomer
  • Designed to withstand various fuels, lubricants, acids and highly corrosive fluids
  • Highly resistant to cut-through and abrasion
  • Suitable for synthetic fuel and hydraulic oil-resistant applications and high-temperature coverings

Downloads

Specifications

Expanded Inner Diameter0.25 in
Flammability RatingSelf-extinguishing
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Non-CorrosiveYes
Overall Length (Imperial)200 ft
Recovered Inner Diameter1 in
Applicable SAE-AMS-DTL-23053 Specifications23053/13
Inner Diameter After Shrink (Metric)3.18 mm
Inner Diameter Before Shrink (Metric)6.35 mm
Operating Temperature Range (Fahrenheit)-67 °F to 392 °F
Heat Shrink TypeSpecialty Polymer Tubing
Product ColorBlack
Shrink Ratio2:1
MaterialFluoroelastomer
Inner Diameter After Shrink (Imperial)0.125 in
Tubing TypeSpecial Purpose, Fluoroelastomer
Mil SpecAMS-DTL-23053/13
Elongation450 %
Inner Diameter Before Shrink (Imperial)0.25 in
Maximum Operating Temperature (Celsius)200 Degree Celsius
Tensile Strength (Imperial)2400 Pound-Force Per Square Inch
Color FamilyBlack
Operating Temperature Range (Celsius)-55 °C to +200 °C
Expanded Inner Diameter (Metric)6.35 mm
Maximum Operating Temperature (Fahrenheit)392 Degree Fahrenheit
