3M Products & Supplies

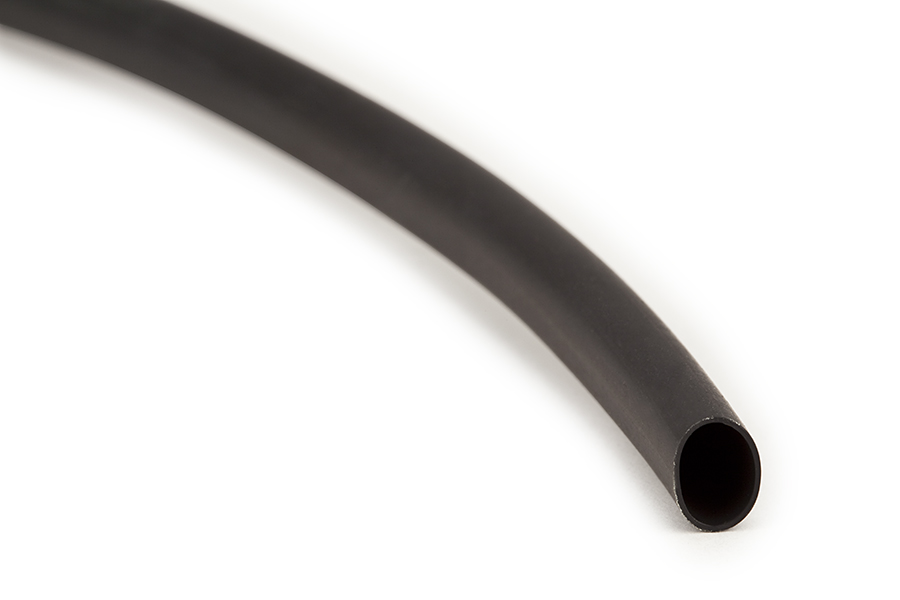

3M Modified Polychloroprene Tubing NST-1 3/4-Black: 50 ft spool length, 2 spools per carton - NST-1 3/4-50'-BLACK-SPOOL

Sold As: 400-Pack
SKU: 7100084393
MPN: 7100084393
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007586067
3M ID: 80610675649
5 Digit UPC: 58606
$7,296.49 ($18.24 / Count)
Hurry up! Current stock:

Product Description

Overview

  • Suitable for applications requiring a tough, highly flexible covering
  • 3M™ NST Tubing provides high abrasion and cut-through resistance, making it ideal for highly flexible covering applications. This tubing has a 2:1 shrink ratio and provides insulation for 600V-rated applications. The flexible modified chlorinated polyolefin construction offers superior resistance to heat and hydrocarbon oils.
  • Expanded I.D. of 1-3/4 inches
  • Withstands temperatures of -94 to 250 degrees F (-70 to 121 degrees C)
  • UL Listed, SAE-AMS-DTL-23053/1 Class 1, 2, AMS-R46846 and AMS-3623 Certified
  • Made of black flexible modified chlorinated polyolefin
  • 2 spools/carton
  • Flame-retardant tubing is rated for 600V applications
  • Ideal for use in jacketing cable harnesses with its superior mechanical properties and wide operating temperature range
  • 3M™ NST Tubing is color-coded for quick and easy identification of the wire. The wide operating temperature range and superior mechanical properties of the tubing make it an ideal choice for jacketing cable harnesses. It's also well-suited for military aircraft or vehicle applications and covering hydraulic couplings, as well as the fabrication and repair of flexible harnesses and wire bundles. Using hot-stamp or print-wheel methods, this tubing is easily markable. It withstands temperatures of -94 to 250 degrees F (-70 to 121 degrees C). UL Listed, SAE-AMS-DTL-23053/1 Class 1,2, AMS-R46846 and AMS-3623 Certified.
  • 50-ft spool
  • Highly resistant to cut-through and abrasion

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
Spec Sheet



Specifications

Non-CorrosiveYes
MaterialModified Neoprene
Minimum Expanded Tubing I. D.1.75 Inch
Operating Temperature Range (Celsius)-70 °C to +121 °C
Operating Temperature Range (Fahrenheit)-94 °F to 250 °F
Tubing TypeSpecial Purpose, Modified Neoprene
RoHS EU CommentsContact 3M for information
Mil SpecAMS-DTL-23053/1, Class 1 and 2
Shrink Ratio2:1
Flammability RatingSelf-Extinguishing
Agency ApprovalsAMS-R46846 and AMS 3623
Tensile Strength2100 Pound-Force Per Square Inch
Length50 Linear Foot
Elongation500 %
Recovered Inner Diameter0.87 Inch
National Stock Number5970011927384
ColorBlack
Dielectric Strength800 Volt
RoHS 2011/65/EU CompliantNo
Brand3M
