3M Products & Supplies

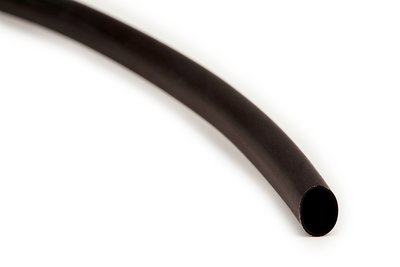

3M Modified Polychloroprene Tubing NST-3-Black, 50 ft Length per spool, 1 spool per carton - NST-3-50'-BLACK-SPOOL

Sold As: 50-Pack
SKU: 7010297620
MPN: 7010297620
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007586081
3M ID: 80610675664
5 Digit UPC: 58608
$1,590.80 ($31.82 / Count)
Hurry up! Current stock:

Product Description

Overview

  • Expanded I.D. of 3 inches
  • Suitable for applications requiring a tough, highly flexible covering
  • Highly resistant to cut-through and abrasion
  • 1 spool/case
  • Withstands temperatures of -94 to 250 degrees F (-70 to 121 degrees C)
  • 3M™ NST Tubing is color-coded for quick and easy identification of the wire. The wide operating temperature range and superior mechanical properties of the tubing make it an ideal choice for jacketing cable harnesses. It's also well-suited for military aircraft or vehicle applications and covering hydraulic couplings, as well as the fabrication and repair of flexible harnesses and wire bundles. Using hot-stamp or print-wheel methods, this tubing is easily markable. It withstands temperatures of -94 to 250 degrees F (-70 to 121 degrees C). UL Listed, SAE-AMS-DTL-23053/1 Class 1,2, AMS-R46846 and AMS-3623 Certified.
  • Flame-retardant tubing is rated for 600V applications
  • 50-ft spool
  • UL Listed, SAE-AMS-DTL-23053/1 Class 1, 2, AMS-R46846 and AMS-3623 Certified
  • 3M™ NST Tubing provides high abrasion and cut-through resistance, making it ideal for highly flexible covering applications. This tubing has a 2:1 shrink ratio and provides insulation for 600V-rated applications. The flexible modified chlorinated polyolefin construction offers superior resistance to heat and hydrocarbon oils.
  • Ideal for use in jacketing cable harnesses with its superior mechanical properties and wide operating temperature range
  • Made of black flexible modified chlorinated polyolefin

Legal Disclaimer

  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Manufacturing Origin: USA
Spec Sheet



Specifications

MaterialModified Neoprene
Minimum Expanded Tubing I. D.3 Inch
RoHS EU CommentsContact 3M for information
Mil SpecAMS-DTL-23053/1, Class 1 and 2
Tubing TypeSpecial Purpose, Modified Neoprene
Shrink Ratio2:1
Non-CorrosiveYes
Operating Temperature Range (Celsius)-70 °C to +121 °C
ColorBlack
Tensile Strength2100 Pound-Force Per Square Inch
Dielectric Strength800 Volt
Brand3M
Flammability RatingSelf-Extinguishing
Agency ApprovalsAMS-R46846 and AMS 3623
RoHS 2011/65/EU CompliantNo
Recovered Inner Diameter1.5 Inch
Elongation500 %
Length50 Linear Foot
