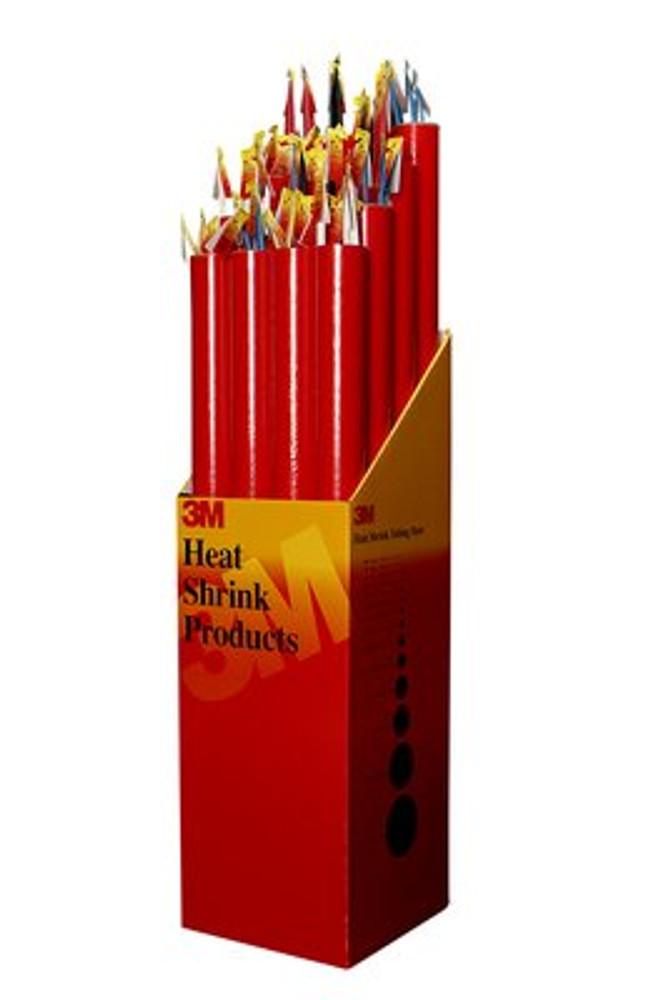

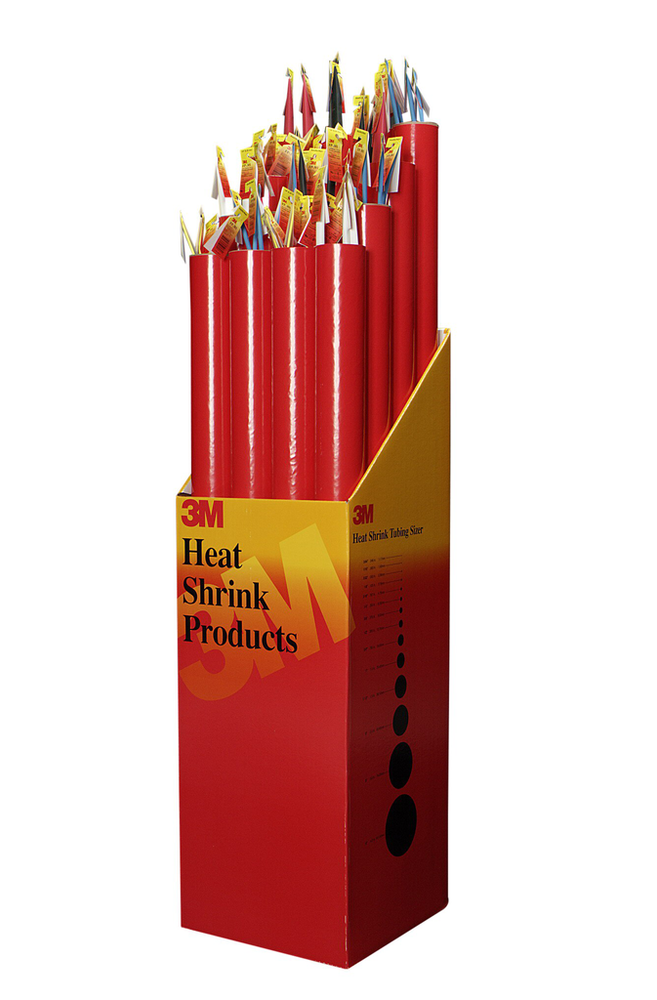

3M™ Heat Shrink Tubing MFP is a thin wall tubing that provides a high degree of mechanical strength and high temperature resistance. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has semi rigid, modified polyvinylidene fluoride construction that offers superior abrasion resistance and cut through properties.
Features
Downloads
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
|---|---|
| Mil Spec | AMS-DTL-23053/8 and AMS-DTL-23053/18, Class 1 |
| Inner Diameter Before Shrink (Imperial) | 0.046 in |
| Inner Diameter After Shrink (Metric) | 58 mm |
| Operating Temperature Range (Celsius) | -55 °C to +175 °C |
| Elongation | 350 % |
| Shrink Ratio | 2:1 |
| Maximum Operating Temperature (Celsius) | 175 Degree Celsius |
| Product Form | 48 in (1.22 m) sticks |
| Inner Diameter After Shrink (Imperial) | 0.023 in |
| Recovered Inner Diameter | 0.02 in |
| UL Bug Temperature (Fahrenheit) | 301 Degrees Fahrenheit |
| UL Bug Voltage | 600 Volt |
| Applicable SAE-AMS-DTL-23053 Specifications | 23053/8 and 23053/18 class 1 |
| Expanded Inner Diameter (Metric) | 1.17 mm |
| Color Family | Transparent |
| Maximum Operating Temperature (Fahrenheit) | 347 Degree Fahrenheit |
| Non-Corrosive | Yes |
| Overall Length (Imperial) | 48 in |
| Material | Polyvinylidene Fluoride |
| Product Color | Transparent |
| Recovered Inner Diameter (Metric) | 0.58 mm |
| Operating Temperature Range (Fahrenheit) | -67 °F to 375 °F |
| Heat Shrink Type | Specialty Polymer Tubing |
| Size (Metric) | 1.17 mm |
| Inner Diameter Before Shrink (Metric) | 1.17 mm |
| Flammability Rating | UL 224 VW-1 / CSA Oft |
