3M™ Motor Lead Pigtail or V-Stub Splice 5383, 5-8 kV, Feeder: 1/0 AWG-250 kcmil, Motor Lead: AWG-250 kcmil , 1/Case - 7000133145

SKU: 7000133145
MPN: 7000133145
For an accurate lead time please contact us
UPC: 00051128559536
3M ID: 80611425416
5 Digit UPC: 55953
$998.03 each
Hurry up! Current stock:

Product Description

3M™ Motor Lead Pigtail Splicing Kits 5380 Series are designed for splicing motor lead cables to incoming feeder cables. These kits are removable and reusable.

Features

  • The lug or splice cover is made of EPDM rubber to help resist punctures and abrasion damage

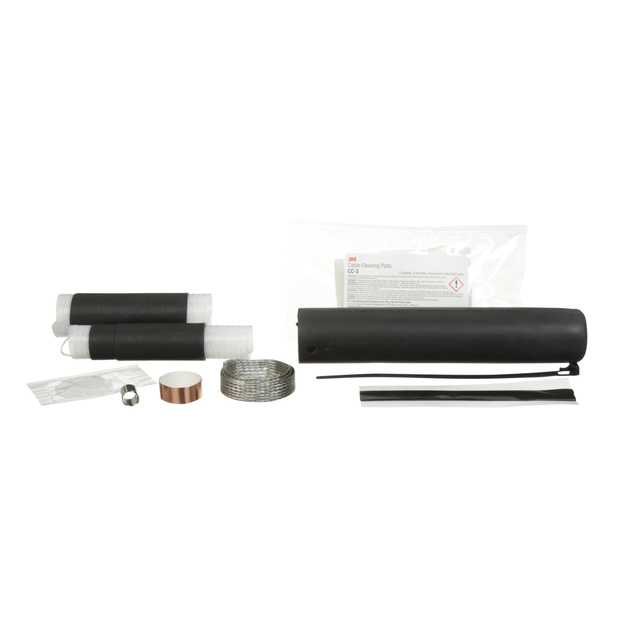

  • Includes 6 tubes of silicone grease, 3 cold shrink jacket tubes, 3 cable ties, 3 ground straps and 1 instruction sheet
  • Rated for 5/8 kV applications
  • Designed for use with 3M™ Scotchlok™ Copper One Hole Lug Series 30000 or other UL Listed copper lugs
  • For use with shielded and non-shielded cables
  • Withstands an operating temperature of 90° C and an emergency overload of 130° C (194° F to 266° F)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Motor Lead Size250 kcmil
Maximum Bolt Length1-1/4 in
Insulation Outside Diameter Range0.53-0.88 in
Maximum Conductor Size (Imperial)250 kcmil
Maximum Conductor Size (Metric)500 mm²
Cable TypeConcentric Neutral (CN)
Maximum Bolt Length (Metric)31.8 mm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter of Boot to Size of Cables (Metric)40.6 mm
Voltage ApplicationMedium Voltage
Number of Conductors1.0
Minimum Conductor Size (Metric)240 mm²
Insulation Outside Diameter0.53-0.88 Inch
Maximum Operating Voltage8 kV
Inner Diameter of Boot to Size of Cables1.60 in
Minimum Conductor Size (Imperial)500 kcmil
Product TypeSplice
Connector IncludedNo
Units per Case3.0
Splice TypePigtail or V-stub
Range Feeder Cable (AWG & kcmil)1/0-250
ApplicationCable Connection
Maximum Lug Length (Metric)101.6 mm
Insulation Outside Diameter Range (Metric)13.5-22.4 mm
Maximum Lug Length4 in
Maximum Feeder Lead Size250 kcmil
