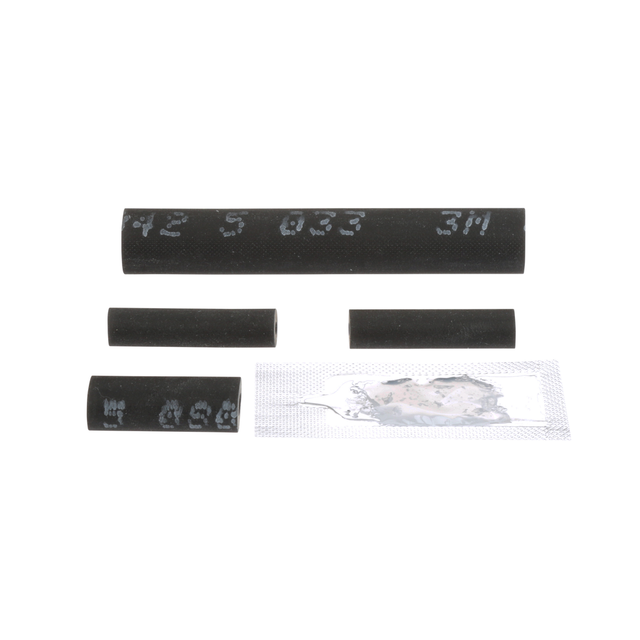

3M™ Motor Lead Inline Pigtail Splice 5313, 1 kV, 1/0 AWG-250 kcmil (feeder), AWG-500 kcmil (motor lead), 1/case - 7000132310

SKU: 7000132310
MPN: 7000132310
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007122692
3M ID: 80610123327
5 Digit UPC: 12269
$196.23 each
Hurry up! Current stock:

Product Description

3M™ Motor Lead Inline Splicing Kits 5311-5314 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of inline connections at 1000 volts and less. The splice’s main component, the slip on splice cover, is made from EPDM rubber. A mastic strip is used for the moisture seal.

Features

  • Has a durable EPDM rubber construction
  • Designed for use with copper compression, 1 or 2 hole lugs
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Splice Cover Inner Diameter2-1/0 AWG: 0.50 in / 1/0 AWG-250 kcmil: 0.42 in
Kit Includes(3) Adapter Sleeves
Maximum Motor Lead Size250 kcmil
Connection TypeInline
Range Feeder Cable (AWG & kcmil)1/0-250
Units per Case1.0
Splice Cover Inner Diameter (Metric)2-1/0 AWG: 12.7 mm / 1/0 AWG-250 kcmil: 10.7 mm
Maximum Bolt Length (Metric)19.1 mm
Maximum Feeder Lead Size250 kcmil
Splice Cover Length9-10 in
ApplicationUsed on Cables with a Rated Operating Temperature of 90 deg C and an Emergency Overload Rating of 130 deg C. To Splice (Insulate and Seal) Motor Lead Connections for 1000V and Less Cables Sized 16 AWG to 500 kcmil
Maximum Bolt Length3/4 in
Maximum Operating Voltage1 kV
Application/IndustryCommercial Construction
Insulation Outside Diameter Range2-1/0 AWG: 0.40-0.54 in / 1/0 AWG-250 kcmil: 0.52-0.80 in
Insulation Outside Diameter Range (Metric)2-1/0 AWG: 10.2-13.7 mm / 1/0 AWG-250 kcmil: 13.2-20.3 mm
Insulation Outside Diameter by Conductor Size (Metric)2–1/0 AWG (10.2-13.7 mm), 1/0 AWG-250 kcmil (13.2-20.3 mm)
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation Outside Diameter by Conductor Size2–1/0 AWG (0.40–0.54 Inch), 1/0 AWG-250 kcmil (0.52-0.80 Inch)
Splice TypeInline
Product ColorBlack
Splice Cover Length (Metric)228.6-254.0 mm
