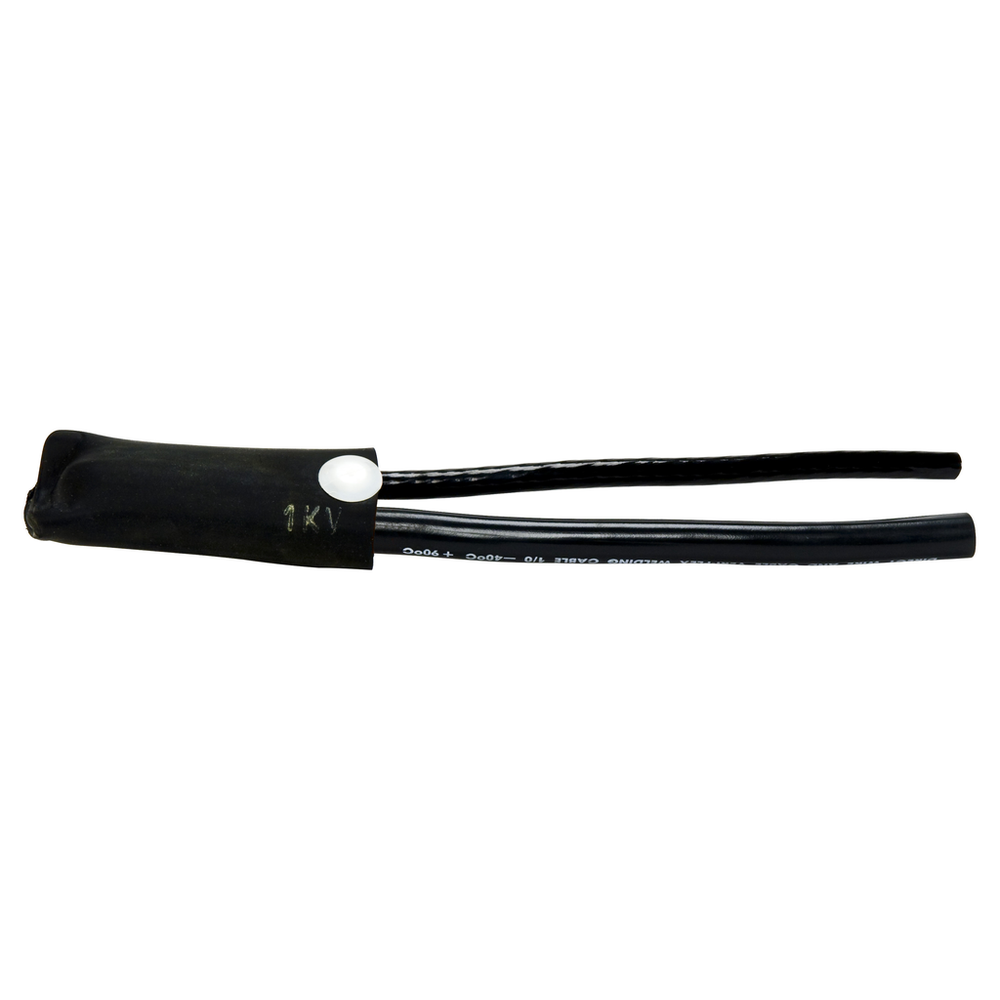

3M™ Motor Lead Inline Pigtail Splice 5314, 1 kV, 250-500 kcmil (feeder), 4/0 AWG-500 kcmil (motor lead), 1/case - 7000148830

SKU: 7000148830
MPN: 7000148830
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007122708
3M ID: 80610123335
5 Digit UPC: 12270
$213.76 each
Hurry up! Current stock:

Product Description

3M™ Motor Lead Inline Splicing Kits 5311-5314 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of inline connections at 1000 volts and less. The splice’s main component, the slip on splice cover, is made from EPDM rubber. A mastic strip is used for the moisture seal.

Features

  • Has a durable EPDM rubber construction
  • Designed for use with copper compression, 1 or 2 hole lugs
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Splice Cover Inner Diameter (Metric)4/0 AWG-350 kcmil: 15.2 mm / 350-500 kcmil: 21.3 mm
Insulation Outside Diameter Range4/0 AWG-350 kcmil: 0.67-0.91 in / 350-500 kcmil: 0.90-1.05 in
Maximum Operating Voltage1 kV
Maximum Motor Lead Size500 kcmil
Application/IndustryCommercial Construction
Kit Includes(3) Adapter Sleeves
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation Outside Diameter by Conductor Size4/0 AWG-350 kcmil (0.67-0.91 Inch), 350-500 kcmil (0.90-1.05 Inch)
ApplicationUsed on Cables with a Rated Operating Temperature of 90 deg C and an Emergency Overload Rating of 130 deg C. To Splice (Insulate and Seal) Motor Lead Connections for 1000V and Less Cables Sized 16 AWG to 500 kcmil
Product ColorBlack
Splice Cover Inner Diameter4/0 AWG-350 kcmil: 0.60 in / 350-500 kcmil: 0.84 in
Range Feeder Cable (AWG & kcmil)250-500
Units per Case1.0
Insulation Outside Diameter by Conductor Size (Metric)4/0 AWG-350 kcmil (17.0-23.1 mm), 350-500 kcmil (22.9-26.7 mm)
Maximum Feeder Lead Size500 kcmil
Splice Cover Length (Metric)304.8-330.2 mm
Maximum Bolt Length1-1/4 in
Connection TypeInline
Insulation Outside Diameter Range (Metric)4/0 AWG-350 kcmil: 17.0-23.1 mm / 350-500 kcmil: 22.9-26.7 mm
Maximum Bolt Length (Metric)31.8 mm
Splice TypeInline
Splice Cover Length12-13 in
