3M™ Motor Lead Pigtail Splice 5304, 1 kV, 1-Hole Lug Connection, Feeder: 250-500 kcmil , Motor Lead: 4/0 AWG-500 kcmil , 1/Case - 7000005808

SKU: 7000005808
MPN: 7000005808
For an accurate lead time please contact us
UPC: 00054007122661
3M ID: 80008006449
5 Digit UPC: 12266
$171.44 each
Hurry up! Current stock:

Product Description

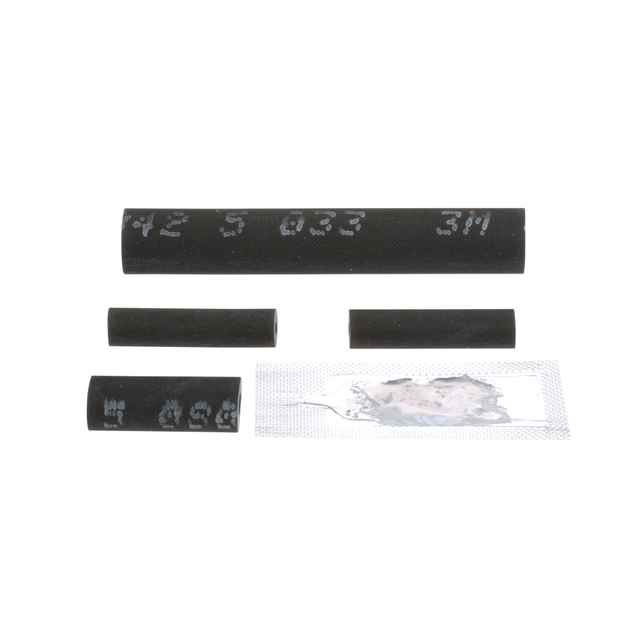

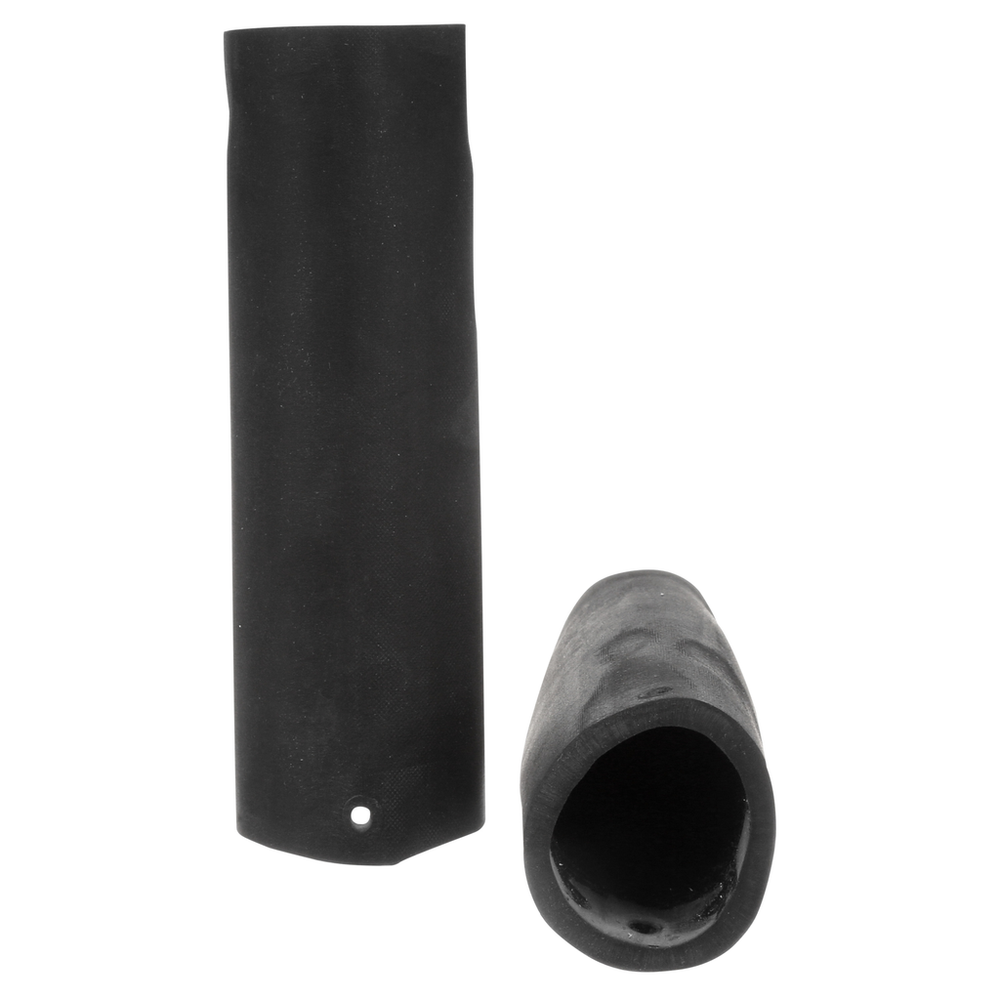

3M™ Motor Lead Pigtail Splicing Kits 5300 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of pigtail (stub) connections at 1000 volts and less. The splice’s main component, the slip-on lug cover, is made from EPDM rubber. Mastic strips are used for the moisture seal. These kits are designed to be used with copper compression, one-hole lugs. After being crimped onto the cables, the lugs are bolted together in a pigtail configuration, then insulated and sealed with the 3M Motor Lead Splicing Kit. Each kit makes three splices and contains the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M™ Scotchlok™ Copper Compression Lugs 30000 Series, or other UL listed copper lugs, can be used. Kit contents include: • (3) Pigtail lug covers • (3) Mastic sealing strips • (3) Locking pins (kits 5302–5304 only) • (3) Tubes of silicone grease • (1) Instruction sheet

Features

  • For pigtail (stub) connections at 1000V or less
  • CSA Certified and RoHS 2011/65/EU Compliant
  • Slip-on lug cover is made of durable EPDM rubber
  • Designed to use with copper compression, 1-hole lugs
  • Includes 3 each of pigtail lug covers, mastic sealing strips, and tubes of silicone grease, plus an instruction sheet
  • Splices motor lead cables to incoming feeder cables
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Lug Cover Length (Metric)170.2 mm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Lug Cover Length6.7 in
Application/IndustryCommercial Construction
Insulation Outside Diameter Range0.67-1.05 in
Maximum Operating Voltage1 kV
Maximum Motor Lead Size500 kcmil
Cable ShieldingNon-shielded
Maximum Feeder Lead Size500 kcmil
Range Feeder Cable (AWG & kcmil)250-500
Units per Case1.0
ApplicationCross Linked Polyethylene Cable; Ethylene Propylene Rubber Cable; For Insulating and Sealing Motor Lead Connections for Copper Conductors; Polyethylene Cable
Insulation Outside Diameter0.67-1.05 Inch
Splice TypePigtail Only
Insulation Outside Diameter Range (Metric)17.0 - 26.7 mm
Lug Cover Inner Diameter (Metric)43.2 mm
Kit Includes(3) Pigtail Lug Covers
Lug Cover Inner Diameter1.70 in
Maximum Bolt Length1-1/2 in
Maximum Bolt Length (Metric)38.1 mm
Product ColorBlack
