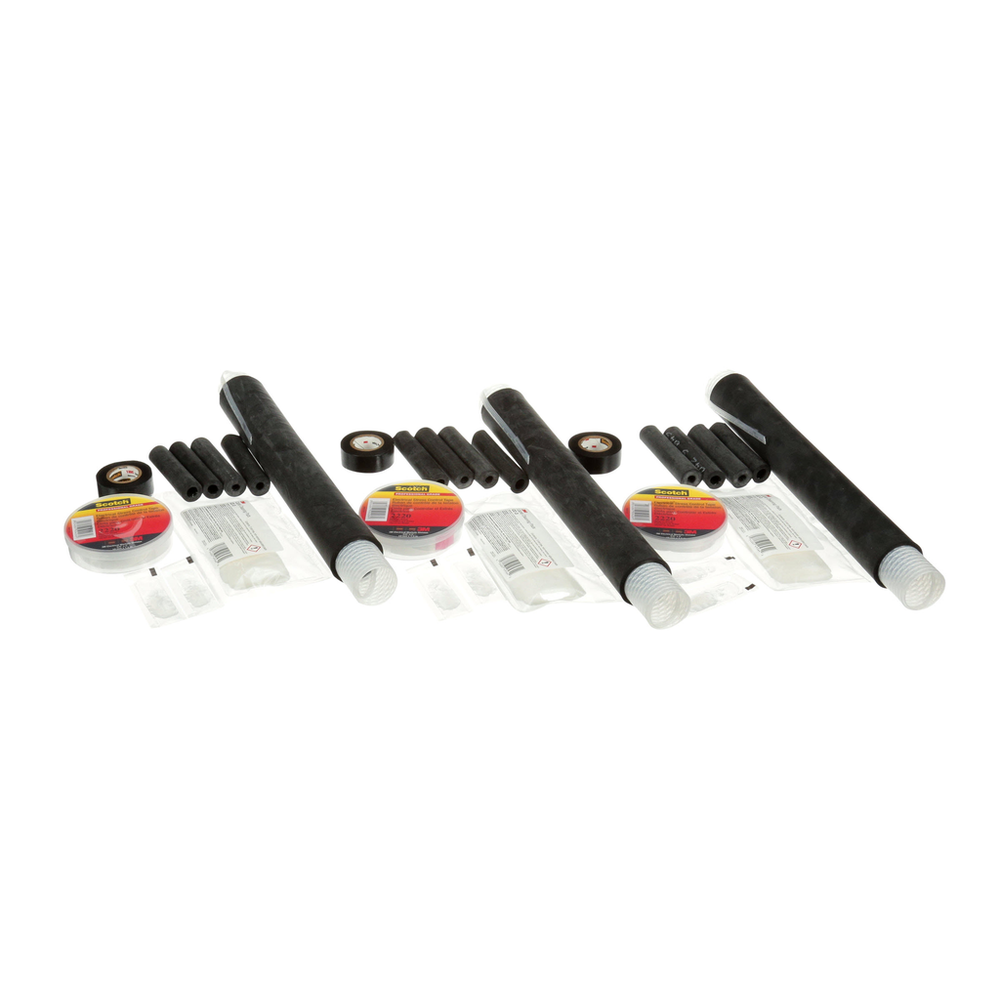

3M™ Motor Lead Inline Splice 5334, 5-8 kV, 250-500 kcmil (feeder), 4/0 AWG-500 kcmil (motor lead), 1/case - 7100164408

SKU: 7100164408
MPN: 7100164408
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007122784
3M ID: 80610735252
5 Digit UPC: 12278
$682.48 each
Hurry up! Current stock:

Product Description

3M™ Motor Lead Inline Splicing Kits 5331-5334 Series are designed for splicing motor lead cables to incoming feeder cables. 3M™ Motor Lead Splicing Kits 5331-5334 can accommodate inline connections, 5/8 kV shielded and non-shielded feeders.

Features

  • Designed for splicing motor lead cables to the incoming feeder cables
  • Accommodates wire size of 10 to 4 AWG
  • Suitable for use with 3M™ Scotchlok™ Copper One Hole Lug Series 30000 compression lugs or other UL Listed copper lugs
  • Rated for 5/8 kV applications
  • For use with shielded or non-shielded cables
  • Includes 3 rolls Scotch® Electrical Stress Control Tape 2220, 12 adapters, 3 instruction sheets and more
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation Outside Diameter by Conductor Size4/0-350 kcmil (0.75-0.98 Inch), 350-500 kcmil (0.94-1.12 Inch)
Maximum Motor Lead Size500 kcmil
Range Feeder Cable (AWG & kcmil)250-500
Maximum Operating Voltage8 kV
Maximum Bolt Length1-1/2 in
Insulation Outside Diameter Range (Metric)4/0-350 kcmil: 19.1-24.9 mm / 350-500 kcmil: 23.9-28.4 mm
Splice Cover Inner Diameter (Metric)4/0 AWG-350 kcmil: 15.2 mm / 350-500 kcmil: 21.3 mm
Maximum Bolt Length (Metric)38.1 mm
Insulation Outside Diameter Range4/0-350 kcmil: 0.75-0.98 in / 350-500 kcmil: 0.94-1.12 in
Splice Cover Length (Metric)431.8-457.2 mm
Units per Case1.0
Splice TypeInline
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Splice Cover Inner Diameter4/0 AWG-350 kcmil: 0.60 in / 350-500 kcmil: 0.84 in
Splice Cover Length17-18 in
Maximum Feeder Lead Size500 kcmil
Insulation Outside Diameter by Conductor Size (Metric)4/0-350 kcmil (19.1-24.9 mm), 350-500 kcmil (23.9-28.4 mm)
