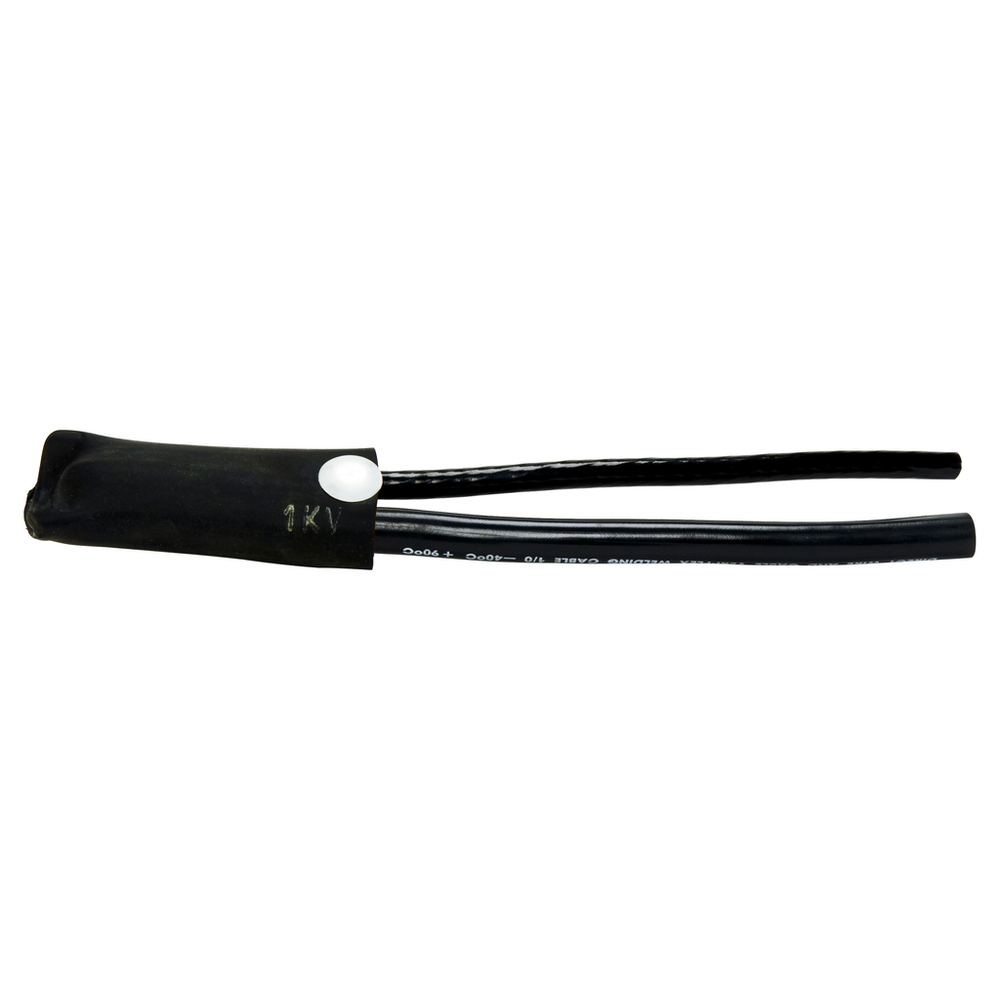

3M™ Motor Lead Pigtail Splice 5324, 5-8 kV, 250-500 kcmil (feeder), 4/0 AWG-500 kcmil (motor lead), 1/case - 7000006044

SKU: 7000006044
MPN: 7000006044
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007122746
3M ID: 80610735211
5 Digit UPC: 12274
$628.71 each
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Motor Lead Size500 kcmil
Cable ShieldingNon-shielded
Minimum Conductor Size (Metric)95 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation Outside Diameter0.75-1.12 Inch
Number of Conductors1.0
Maximum Conductor Size (Metric)240 mm²
Lug Cover Length (Metric)266.7-292.1 mm
Indoor/OutdoorIndoor
Splice TypePigtail Only
Maximum Bolt Length1-1/2 in
Insulation Outside Diameter Range0.75-1.12 in
Cable TypePolymeric insulated cables
Voltage5/8 kV
Maximum Bolt Length (Metric)38.1 mm
Maximum Conductor Size (Imperial)500 kcmil
Units per Case1.0
Maximum Operating Voltage8 kV
Maximum Feeder Lead Size500 kcmil
Insulation Outside Diameter Range (Metric)1.90 - 28.4 mm
Minimum Conductor Size (Imperial)4/0 AWG
Lug/Stem Connector Included in KitNo
Range Feeder Cable (AWG & kcmil)250-500
Lug Cover Length10.5-11.5 in
