3M Products & Supplies

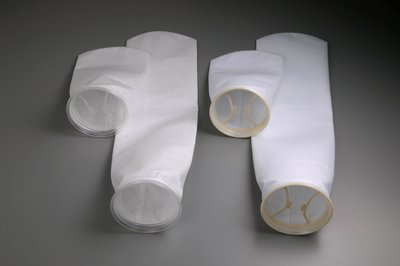

3M NB Series Filter Bag, Model NB0010EES1C, 10 Micron, 50 per case

Sold As: 50-Pack
SKU: 7000029461
MPN: NB0010EES1C
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00016145181016
3M ID: 70020189471
5 Digit UPC: 18101
$290.83 ($5.82 / Count)
Hurry up! Current stock:

Product Description

Overview

  • For plastic collar versions, we weld the filter bag media to a specially designed plastic collar to provide proper sealing of the 3M NB series filter bags in most conventional bag housings. The plastic collar incorporates an ergonomically designed handle allowing for easy removal of the filter bag from the filter housing. Handle designs also allow for insertion of bag accessories (displacement balloons, magnets, etc.) For ease of identification and traceability, we engrave the handles with micron grade and manufacturing lot information.
  • We use welded Side Seams to form the bag and secure the sealing ring. Because there are no sewn holes there is no particle by-pass through the seam. Media migration is also controlled through thermal treatment of the exterior surface, which prevents material fibers from migrating into the clean, filtered process media. We then use state-of-the-art procedures to properly weld the seams and affix the media to the collar and form a complete, cohesive filter with no holes from sewing.
  • Manufacturing processes do not include the use of silicone or adhesives for greater purity of filtered media
  • We provide cost effective solutions for applications where nominally rated bag filtration is preferred. Our 3M Series NB filter bags are manufactured in Size #1 and #2 configurations, ranging in grades from 1 to 200 microns and fit into standard bag filter baskets and housings. Our lightweight, low cost filtering material offers high chemical and corrosion resistance. It has a high contaminant holding capacity and ability to remove both solid and viscous particles.
  • Low unit-cost bags are collapsible for easy handling
  • Inside-Outside Flow Configuration, effectively captures contaminants on the inside
  • Proper sealing of the bag in the filter housing is necessary for prevention of fluid bypass and subsequent contamination of the downstream fluid. All of our 3M™ Series NB Polyethylene and Polyester Filter Bags are offered in both plastic and metal ring sealing collar versions that will properly seal onto most filter bag manufacturers' housings.
  • Welded seams and thermally treated exterior surfaces for control of fiber migration
  • Material has the ability to handle viscous fluids
  • Metal ring collar versions use a galvanized steel ring for sealing the 3M NB series filter bag in the housing. These versions are appropriate for use in most filter bag housings that will not accept the plastic collar version.
  • We manufacture each felt filter bag grade from high performance fibers based on extensive media performance testing. They provide good to excellent chemical resistance to mineral acids, organic acids, alkalis, organic solvents, and microorganisms. All of our 3M NB series filter bags are ISO 9001:2008 certified and do not include silicone, binders, or adhesives. All polypropylene grades and specific polyester grades use materials that are listed for food contact per 21 CFR.
  • 3M™ Series NB Polypropylene & Polyester bag filters leverage 3M’s filtration experience and manufacturing expertise to provide cost effective solutions for applications where nominally rated bag filtration is appropriate. 3M Series NB bags are offered in Size #1 and #2 configurations in grades from 1 to 200 microns and fit into standard bag filter baskets and housings.

Specifications

Filter MaterialPolyester Felt
SeriesSeries NB
Filter TypeBag Filter
Brand3M
IndustriesIndustrial
Flow Rate (metric)340.7 Litre per minute
Length (Metric)44.5 cm
Flow Rate90 gpm
Length17.5 Inch
Micron Rating10
Diameter7
Diameter (Metric)17.8
