3M Products & Supplies

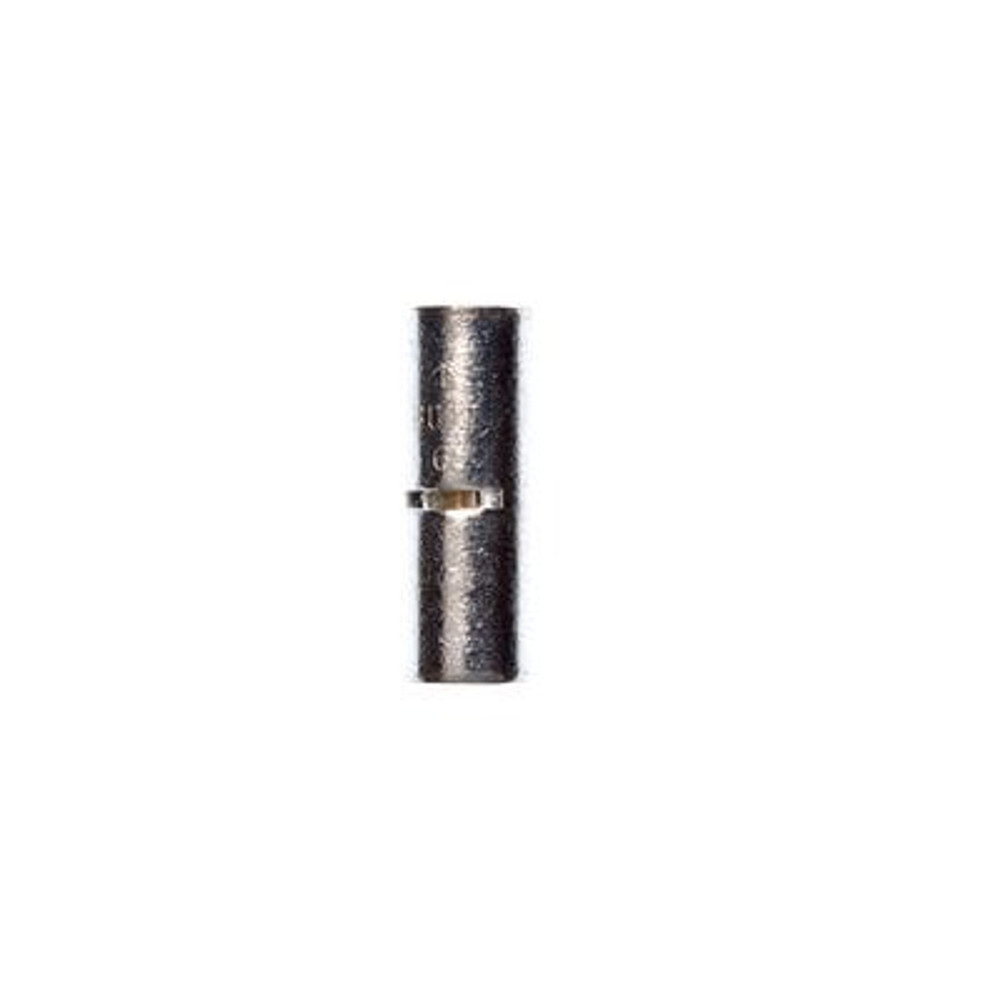

3M™ Non-Insulated Brazed Seam Butt Connector, 66-W, Max. Temp. 347 °F (175 °C) for bare terminals - 7100163769

Sold As: 500-Pack
SKU: 7100163769
MPN: 7100163769
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007291510
3M ID: 80601388699
MPN: 66-W
$618.09 ($1.24 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 16-14 AWG and case quantities of 500 per case.

Features

  • RoHS 2011/65/EU Compliant
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Built-in wire stop for correct positioning
  • Made of nickel-plated, annealed steel
  • Maximum Temperature Range of 900 degrees F (482 degrees C)

Downloads

Specifications

Body MaterialCopper Alloy
Insulation MaterialNon-insulated
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connector TypeButt
Maximum Conductor Size (Metric)25 mm²
Minimum Conductor Size (Imperial)4 AWG
Minimum Conductor Size (Metric)25 mm²
Maximum Conductor Size (Imperial)4 AWG
Country of OriginUnited States
Maximum Insulation Outer Diameter (Metric)0.0
Connection Width (Imperial)0.0
Connection Width (Metric)0.0
Terminal TypeButt Connectors
