3M Products & Supplies

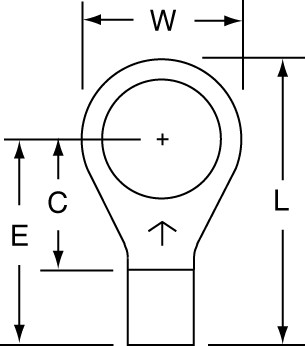

3M™ Non-Insulated Brazed Seam Ring Tongue Terminal 13-6-W, Max. Temp. 347 °F (175 °C) for bare terminals - 7100163682

Sold As: 1000-Pack
SKU: 7100163682
MPN: 7100163682
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007287353
3M ID: 80601384508
MPN: 13-6-W
$159.60 ($0.16 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Insulation MaterialNon-insulated
Minimum Stud Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel StyleBrazed
Ring TypeStandard
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius)175.0
Terminal TypeRing
Maximum Conductor Size (Metric)5.26
Connection TypeCrimp
Maximum Operating Temperature (Celsius) UOMDegree
Country of OriginUnited States
Terminal StyleStandard
Minimum Stud Diameter (Metric)3.5
Minimum Conductor Size (Metric)3.31 mm²
UL File NumberE23438
Barrel Length (Imperial)0.25 Inch
Minimum Stud Diameter (Metric) UOMmm
Maximum Conductor Size (Imperial)10 AWG
