3M Products & Supplies

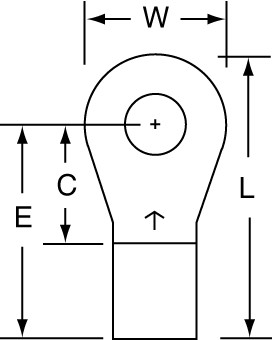

3M™ Non-Insulated Brazed Seam Ring Tongue Terminal 14-14S-W, Max. Temp. 347 °F (175 °C) for bare terminals - 7100163750

Sold As: 1000-Pack
SKU: 7100163750
MPN: 7100163750
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007290766
3M ID: 80601387949
MPN: 14-14S-W
$269.72 ($0.27 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Ring TypeStandard
Minimum Stud Diameter (Imperial) UOMin
Barrel StyleBrazed
Maximum Conductor Size (Imperial)8 AWG
Insulation MaterialNon-insulated
Terminal TypeRing
Terminal StyleStandard
Minimum Stud Diameter (Metric) UOMmm
Maximum Conductor Size (Metric)8.37
Connection TypeCrimp
Country of OriginUnited States
Minimum Conductor Size (Metric)8.37 mm²
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Imperial)8 AWG
Maximum Operating Temperature (Celsius)175.0
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Stud Diameter (Metric)6.35
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL File NumberE23438
