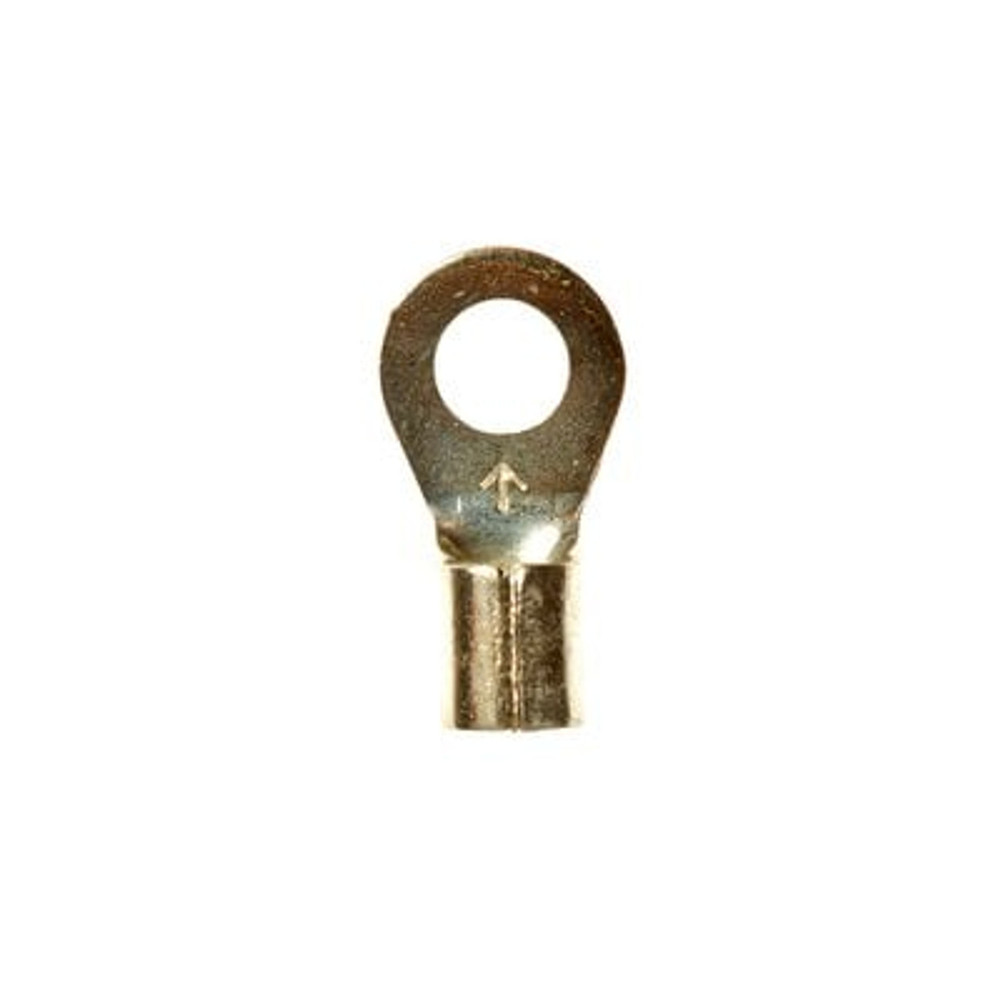

3M™ Non-Insulated Brazed Seam Ring Tongue Terminal 16-56-W, Max. Temp. 347 °F (175 °C) for bare terminals - 7100163765

Sold As: 500-Pack
SKU: 7100163765
MPN: 7100163765
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007291329
3M ID: 80601388509
MPN: 16-56-W
$397.07 ($0.79 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Minimum Conductor Size (Imperial)4 AWG
Insulation MaterialNon-insulated
Terminal StyleStandard
Barrel Length (Imperial)0.25 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Stud Diameter (Metric)7.95
Connection TypeCrimp
Barrel StyleBrazed
Terminal TypeRing
Ring TypeStandard
UL File NumberE23438
Maximum Conductor Size (Imperial)4 AWG
Minimum Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius)175.0
Maximum Conductor Size (Metric)21.2
Minimum Conductor Size (Metric)21.2 mm²
Country of OriginUnited States
