3M Products & Supplies

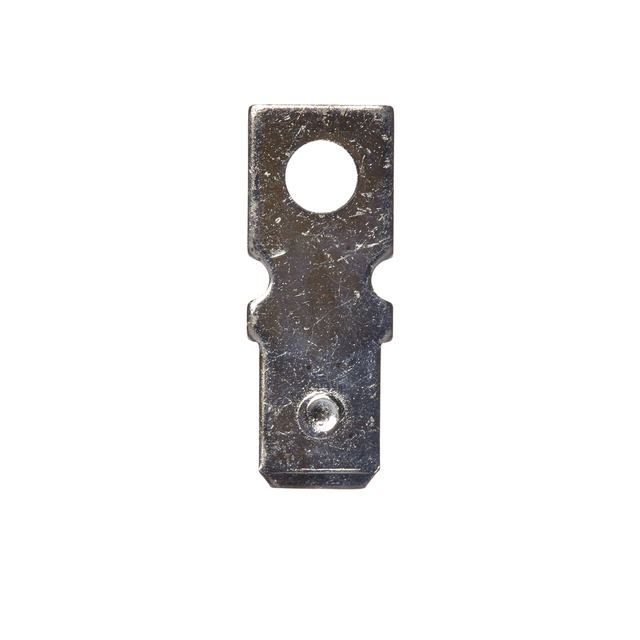

3M™ Non-Insulated Male Tab Rectangular Tongue Terminal 17-10-250, 1000/case, Max. Temp. -40 to 347 °F (-40 to 175 °C) - 7100163806

Sold As: 1000-Pack
SKU: 7100163806
MPN: 7100163806
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007294177
3M ID: 80601391396
MPN: 17-10-250
$111.54 ($0.11 / Count)
Hurry up! Current stock:

Product Description

3M™ Non-Insulated Male Tab Adapter allows for a female disconnect to be connected in a terminal block application. The terminal withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Allows for quick and easy disconnect of wires
  • Withstands a temperature range of -40 to 347 degrees F (-40 to 175 degrees C)

Downloads

Specifications

Connection Width (Imperial)0.25
Connection Width (Imperial) UOMin
Minimum Conductor Size (Metric).34 mm²
Maximum Conductor Size (Metric)1 mm²
Terminal TypeTab
Connection Width (Metric) UOMmm
Country of OriginUnited States
Disconnect TypeMale
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Imperial)18 AWG
Connection Width (Metric)6.35
Minimum Conductor Size (Imperial)22 AWG
