3M Products & Supplies

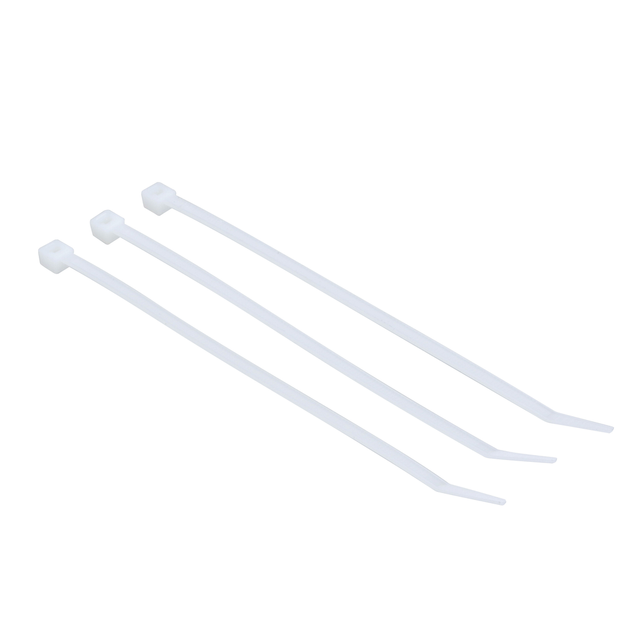

3M™ Nylon 6/6 Light Heavy-Duty Cable Tie CT8NT120-L, 9.00 in x 0.30 in x 0.07 in, Natural, 50/Bag, 500/Case - 7000133465

Sold As: 500-Pack
SKU: 7000133465
MPN: 7000133465
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128593110
3M ID: 80611469703
5 Digit UPC: 59311
$120.98 ($0.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.

Features

  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
  • Secure wire bundles and harness components quickly, without slipping
  • Curved tip allows for faster threading and installation
Spec Sheet



Downloads

Specifications

Country of OriginHonduras
Maximum Bundle Diameter (Metric)51.0
Cable Tie Length UOMmm
Cable Management ProductsCable Ties
Maximum Bundle Diameter (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-40.0
Plenum RatedYes
Maximum Bundle Diameter2 Inch
Cable Length (Metric)228.6
Minimum Bundle Diameter0.1875 Inch
MIL ApprovalNo
Units per Case500.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Solution forLonghaul/Metro Loop Network: Outdoor
Cable Tie Length203.0
Minimum Bundle Diameter (Metric)4.8 mm
TypeStandard
Maximum Operating Temperature (Fahrenheit)185.0
Overall Length (Metric)229.0
Maximum Insulation Outer Diameter (Metric)3.7
Cable Length (Imperial) UOMin
Cable Diameter Range8,1 - 39,4 mm
Minimum Operating Temperature (Celsius) UOMDegree
Package Quantity UOMEACH
Overall Width (Imperial)0.298
Product TypeCable Ties
Flammability RatingUL 94 V-2
Halogen FreeYes
Operating Temperature (Fahrenheit)185 Degree Fahrenheit
ApplicationSecure wire bundling
Cable Tie Base Height8 in
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius)-40.0
Tensile Strength (Metric) UOMkg
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Installation Temperature (Celsius)-20 Degree Celsius
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Cable Length (Imperial)8.0
Operating Temperature (Celsius)85 Degree Celsius
Maximum Insulation Outside Diameter0.145 in
UL ApprovalYes
Cable Length (Metric) UOMmm
Overall Length (Imperial)9.0
UV ResistantNo
Tensile Strength (Metric)54.43
Maximum Operating Temperature85 Degree Celsius
Overall Width (Metric) UOMmm
Solvable FastenerNo
Maximum Operating Temperature (Celsius)85.0
Package Quantity50.0
Maximum Recommended Voltage Rating UOMV
Overall Length (Metric) UOMmm
VG ApprovalNo
Tape TypeBarricade
Overall Width (Metric)7.6
Overall Length (Imperial) UOMin
MaterialNylon 6/6
Operating Temperature Range (Celsius)-40 °C to 85 °C
Operating Temperature Range (Fahrenheit)-40 °F to 185 °F
Maximum Recommended Voltage Rating600.0
