3M Products & Supplies

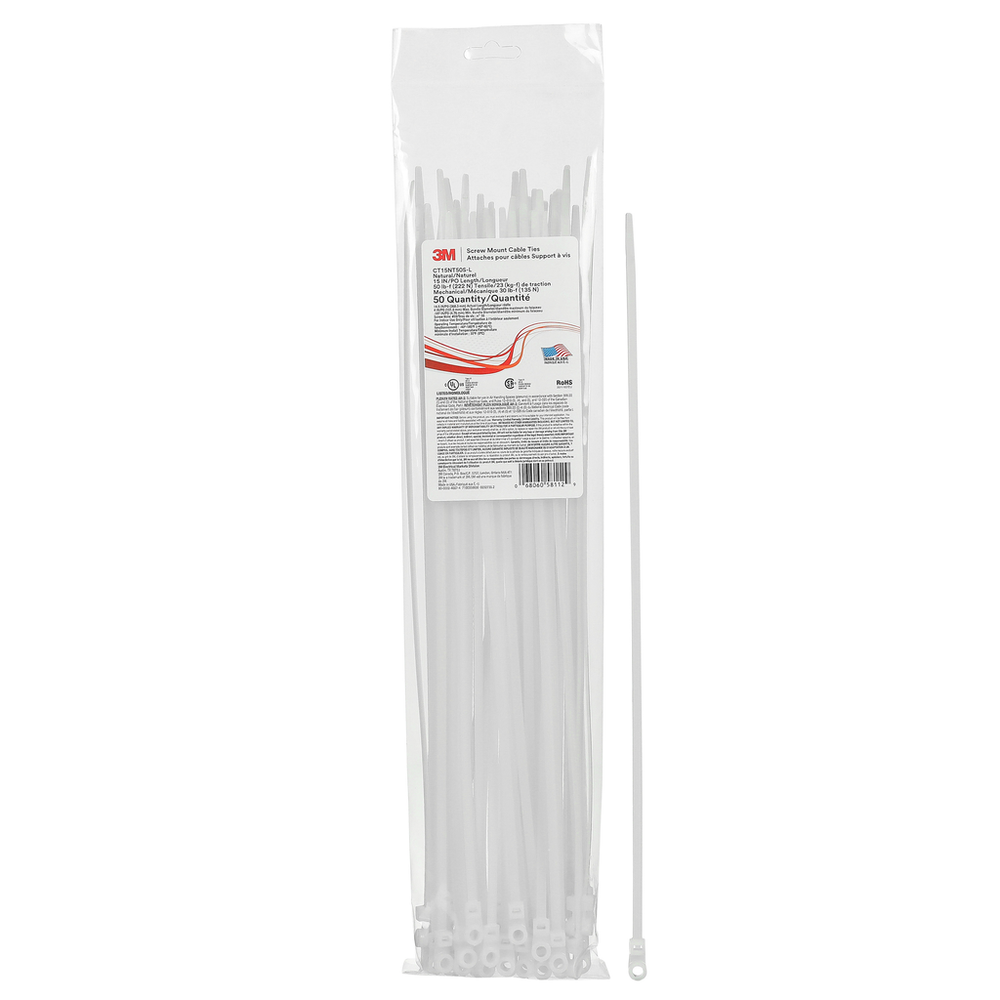

3M™ Screw Mount Cable Tie CT15NT50S-L, Natural 15 inch 50 lb, 50/Bag, 500/Case - 7100358830

Sold As: 500-Pack
SKU: 7100358830
MPN: 7100358830
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060581112
3M ID: 80000240574
$62.19 ($0.12 / Count)
Hurry up! Current stock:

Product Description

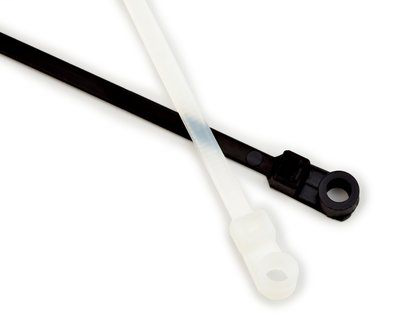

3M™ Screw Mount Cable Ties allow controlled positioning of cables. The easy-to-use ties are made with high-quality 6/6 nylon and can be quickly mounted to walls and structures with screws, bolts or rivets for added security.

Features

  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
  • Made in the USA
  • Can be quickly mounted to walls and structures with screws, bolts or rivets for added security
  • Secure wire bundles and harness components quickly, without slipping
Spec Sheet



Downloads

Specifications

Maximum Insulation Outer Diameter (Metric)3.7
Overall Width (Imperial)0.177
Tensile Strength (Metric) UOMkg
Operating Temperature (Celsius)85 Degree Celsius
Operating Temperature (Fahrenheit)185 Degree Fahrenheit
Maximum Operating Temperature (Fahrenheit) UOMDegree
UL ApprovalYes
Cable Length (Metric)368.3
Minimum Bundle Diameter0.0625 Inch
Overall Length (Metric) UOMmm
Tensile Strength (Metric)22.68
Minimum Operating Temperature (Celsius)-40.0
Tensile Strength (kg)22.68 kg
Overall Length (Imperial) UOMin
MaterialNylon 6/6
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)185.0
Cable Length (Imperial) UOMin
Overall Length (Imperial)14.5
Overall Length (Metric)368.3
Overall Width (Metric) UOMmm
Minimum Installation Temperature (Celsius)-20 Degree Celsius
Cable Length (Imperial)14.5
Minimum Operating Temperature (Fahrenheit)-40.0
Product ColorNatural
Minimum Bundle Diameter (Metric)1.6 mm
Operating Temperature Range (Celsius)-40 °C to 85 °C
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Insulation Outside Diameter0.145 in
Flammability RatingUL 94 V-2
Maximum Operating Temperature (Celsius)85.0
Mil SpecMS3367-5-0
Operating Temperature Range (Fahrenheit)-40 °F to 185 °F
Maximum Operating Temperature85 Degree Celsius
ApplicationSecure wire bundling
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Product TypeCable Tie
Country of OriginUnited States
TypeStandard
Overall Width (Metric)4.49
Plenum RatedYes
Package Quantity UOMEACH
Cable Length (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
UV ResistantNo
