3M Products & Supplies

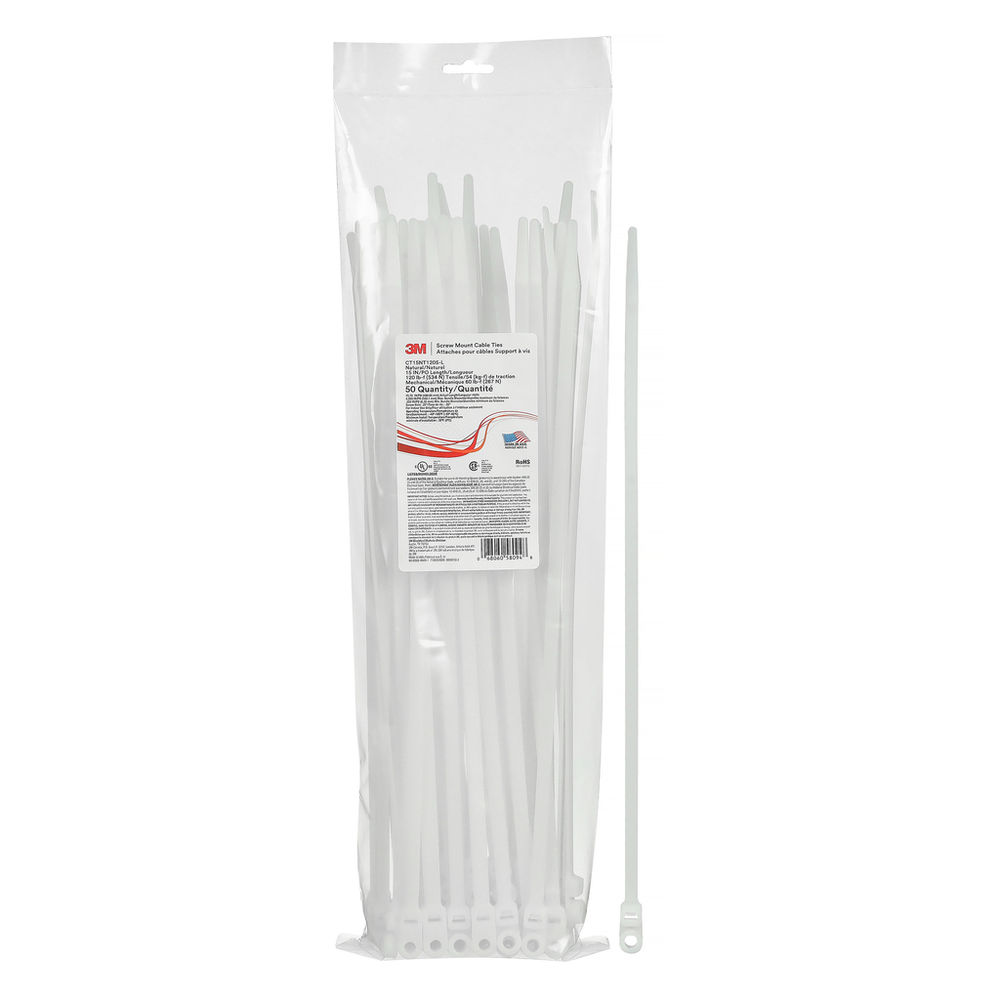

3M™ Screw Mount Cable Tie CT15NT120S-L, Natural 15 inch 120 lb, 50/Bag, 500/Case - 7100359203

Sold As: 500-Pack
SKU: 7100359203
MPN: 7100359203
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060580931
3M ID: 80000240491
$93.29 ($0.19 / Count)
Hurry up! Current stock:

Product Description

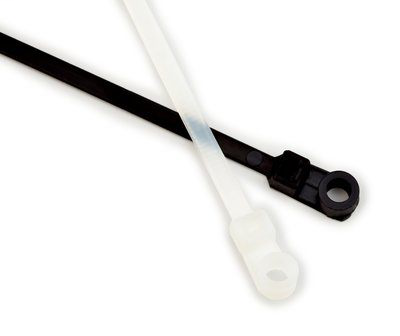

3M™ Screw Mount Cable Ties allow controlled positioning of cables. The easy-to-use ties are made with high-quality 6/6 nylon and can be quickly mounted to walls and structures with screws, bolts or rivets for added security.

Features

  • Made in the USA
  • Secure wire bundles and harness components quickly, without slipping
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
  • Can be quickly mounted to walls and structures with screws, bolts or rivets for added security
Spec Sheet



Downloads

Specifications

Cable Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Operating Temperature Range (Celsius)-40 °C to 85 °C
Overall Width (Metric) UOMmm
TypeStandard
Maximum Insulation Outer Diameter (Metric)3.7
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
MaterialNylon 6/6
Maximum Operating Temperature (Fahrenheit)185.0
Maximum Operating Temperature85 Degree Celsius
Minimum Bundle Diameter0.0625 Inch
Tensile Strength (kg)22.68 kg
Tensile Strength (Metric) UOMkg
Minimum Operating Temperature (Fahrenheit)-40.0
Flammability RatingUL 94 V-2
Maximum Operating Temperature (Celsius)85.0
Plenum RatedYes
Overall Length (Imperial)15.75
Operating Temperature (Celsius)85 Degree Celsius
Maximum Insulation Outer Diameter (Metric) UOMmm
UV ResistantNo
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric)54.43
UL ApprovalYes
Overall Width (Metric)4.49
Overall Length (Metric)400.05
Overall Length (Metric) UOMmm
Cable Length (Metric) UOMmm
Mil SpecMS3367-5-0
ApplicationSecure wire bundling
Operating Temperature Range (Fahrenheit)-40 °F to 185 °F
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product TypeCable Tie
Minimum Bundle Diameter (Metric)1.6 mm
Overall Length (Imperial) UOMin
Country of OriginUnited States
Product ColorNatural
Cable Length (Metric)400.05
Minimum Operating Temperature (Celsius)-40.0
Cable Length (Imperial)15.75
Minimum Installation Temperature (Celsius)-20 Degree Celsius
Maximum Insulation Outside Diameter0.145 in
Overall Width (Imperial)0.177
Package Quantity UOMEACH
Operating Temperature (Fahrenheit)185 Degree Fahrenheit
