3M Products & Supplies

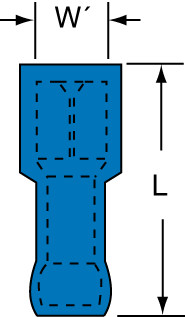

3M™ Nylon Insulated with Insulation Grip Female Disconnect, 73F-375-50-NB, Max. Temp. -40 to 221 °F (-40 to 105 °C) - 7100163773

Sold As: 1000-Pack
SKU: 7100163773
MPN: 7100163773
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007291657
3M ID: 80601388830
MPN: 73F-375-50-NB
$318.42 ($0.32 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Female Disconnect Terminals have dents and rolled edges to offer great holding force while allowing for quick and easy disconnect. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating

Downloads

Specifications

Connection Width (Metric) UOMmm
Disconnect TypeFemale
Connection Width (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Terminal TypeDisconnect
Minimum Conductor Size (Metric)4 mm²
Connection Width (Imperial)0.375
Maximum Conductor Size (Imperial)10 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Metric)6 mm²
Connection Width (Metric)9.525
Country of OriginUnited States
